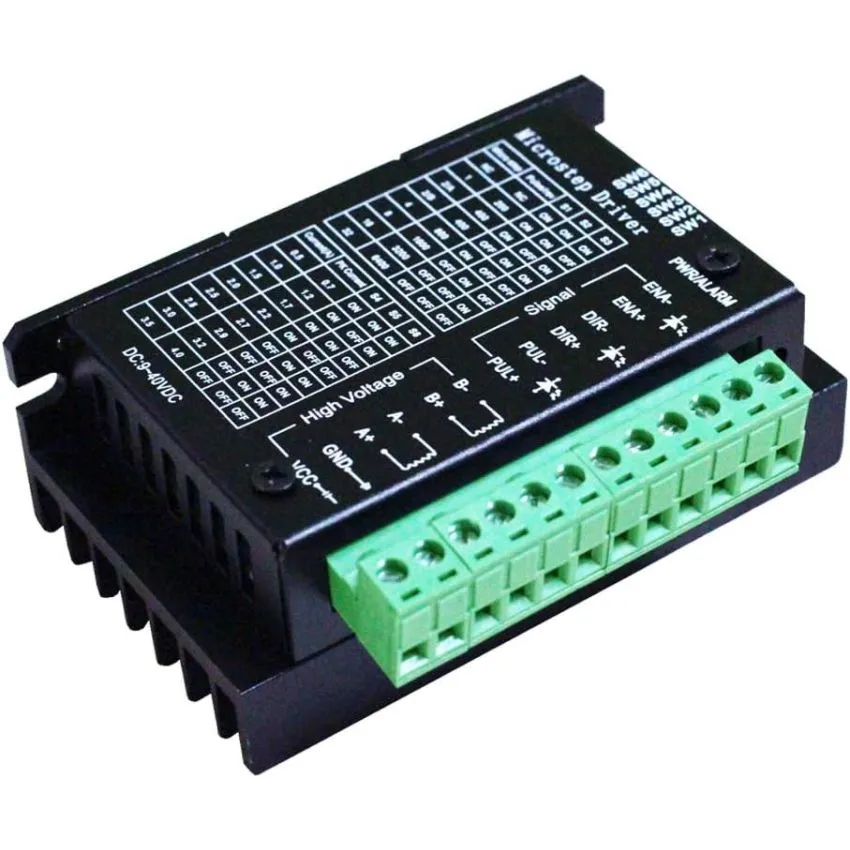

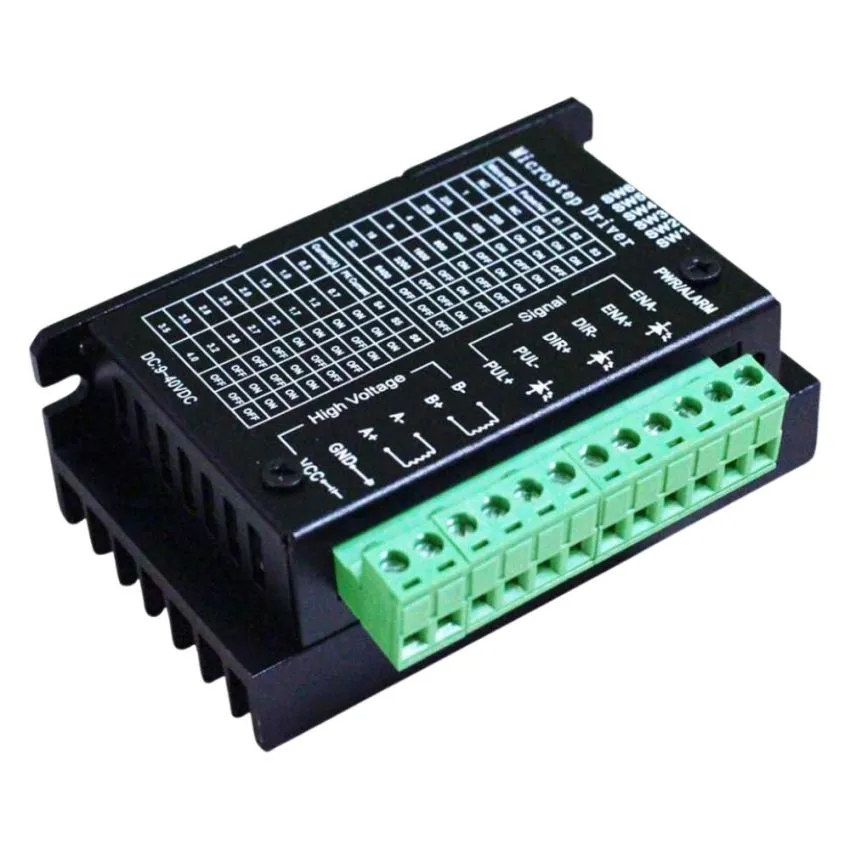

TB6600,Stepper Motor Driver Controller,4.0A,9-42VDC

The TB6600 Stepper Motor Driver is a versatile and reliable controller designed to handle high-power stepper motors for a wide range of applications, including CNC routers, 3D printers, and robotic systems. With a compact design and robust performance, this driver supports input voltages from 9V to 42V DC and can deliver up to 4.0A of output current per phase. It features a microstep resolution of up to 32 steps, providing smooth and precise motor control. The TB6600 is equipped with overheat, overcurrent, and short-circuit protection to ensure safe and stable operation in demanding environments.

• High Performance: Supports input voltage range of 9V to 42V DC and provides up to 4.0A output current per phase.
• Microstepping: Adjustable microstep resolution up to 32 steps for smooth and precise motor control.
• Wide Compatibility: Suitable for NEMA 17 and NEMA 23 stepper motors, making it ideal for CNC routers, 3D printers, and robotic systems.
• Protection Features: Built-in overheat, overcurrent, and short-circuit protection ensure reliable operation and longevity.
• Compact Design: Lightweight and compact, the TB6600 is easy to integrate into existing systems.
• Easy Installation: Features screw terminal connections for simple and secure wiring.
