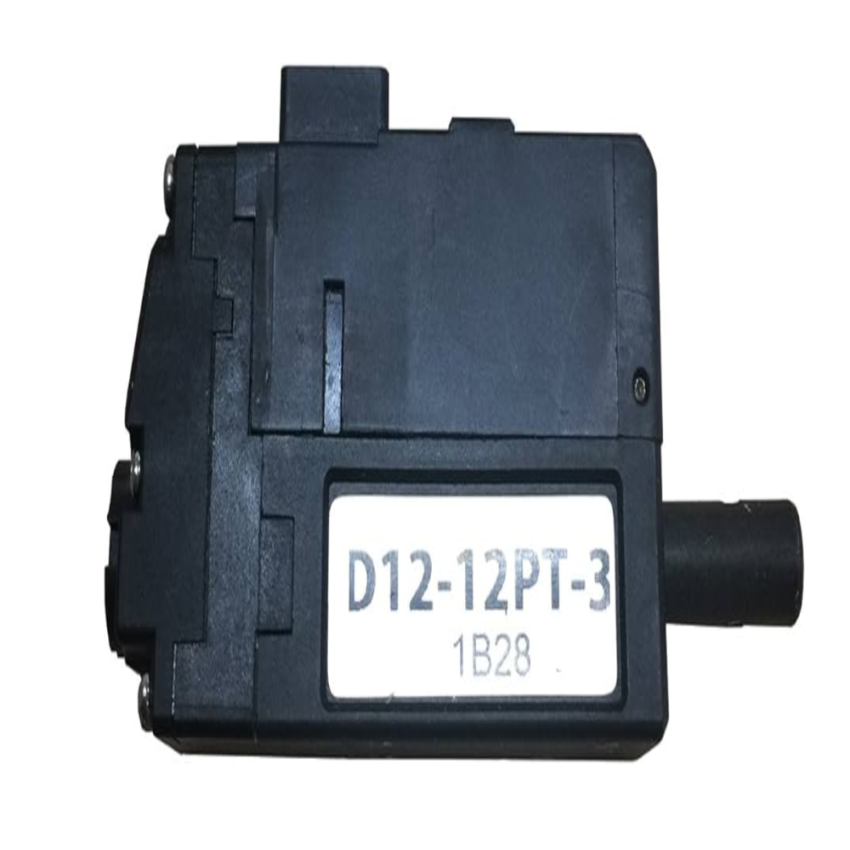

D12-12PT-3, Mini Linear Servo Motor, 26 mm Stroke, 12 N Rated Load

The MightyZap D12-12PT-3 is a mini linear servo motor designed for applications requiring precise linear motion in a compact form factor. With a 26 mm stroke and a rated load of 12 N, it delivers reliable performance for various automation tasks. The actuator integrates essential components such as the drive circuit, position sensor, DC motor, and gearbox, simplifying system design and installation. Its mechanical self-lock feature ensures position holding without continuous power, making it ideal for vertical applications. Supporting TTL/PWM communication, the D12-12PT-3 offers flexibility in control methods, automatically recognizing input signals for seamless integration. Its compact and lightweight design makes it suitable for applications with limited space, while its durable construction ensures long-term reliability. ​

Key Features:

• Precise Position Control: Offers unidirectional repeatability of 30 µm, ensuring accurate linear motion. ​
• Built-in Components: Integrates drive circuit, position sensor, DC motor, and gearbox into a compact design, simplifying installation. ​
• Mechanical Self-Lock: Supports vertical (Z-axis) applications by maintaining position without continuous power. ​
• Communication Flexibility: Supports TTL/PWM communication, automatically recognizing input signals for versatile control options. ​
• Compact and Lightweight: Measures 57.4 mm (L) × 29.9 mm (W) × 15 mm (H) and weighs approximately 49–52 g, suitable for space-constrained applications. ​
• Durable Construction: Features engineering plastic gears and rod, designed for durability and reliable performance. ​

Additional Specifications:

• Voltage: Rated Voltage: 12 V DC Operating Range: 7–13 V DC
• Current: Idle Current: ~30 mA Rated Load Current: ~140 mA Stall Current: ~300 mA
• Power: Motor Power Output: 0.9 W (Core DC Motor)
• Load Capacity: Rated Load: 12 N (≈ 1.22 kgf)
