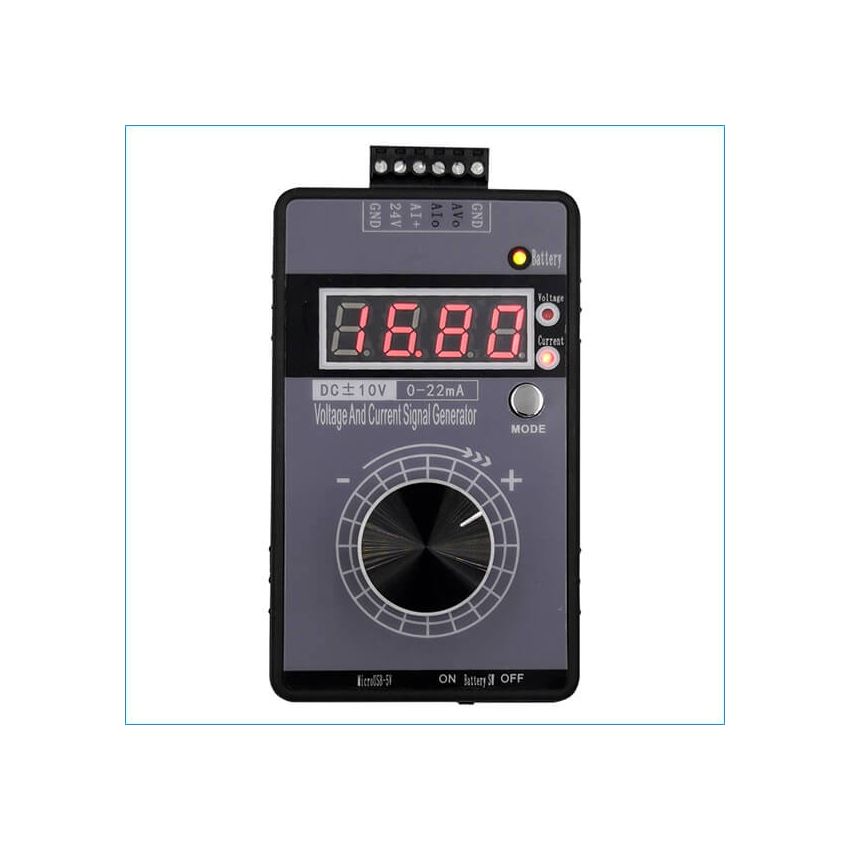

BRT LB01G,Portable Signal Generator,0-5v,0-10V,4-20mA

The BRT LB01G is a compact, high-precision signal generator designed for simulating and calibrating analog signals in industrial automation systems. Its versatile output ranges and fine adjustment capabilities make it suitable for testing PLCs, transmitters, inverters, and other control systems. The device's multiple power supply options and protective features ensure reliable performance in various settings. ​

Key Features:

• Multi-Range Output: Supports adjustable voltage outputs of 0–3.3V, 0–5V, 0–10V, and current outputs of 0–20mA, 4–20mA, and 0–22mA, catering to various signal simulation needs. ​
• High Precision Adjustment: Features an infinite rotation encoder knob allowing fine adjustments with a resolution of 0.01V or 0.01mA, ensuring precise signal output. ​
• Versatile Power Supply Options: Operates via 5V micro-USB, 15–30V external DC through wiring terminals, or an optional internal rechargeable battery, providing flexibility for different environments. ​
• User-Friendly Interface: Equipped with a clear 4-digit LED display and programmable display modes, including current/voltage values, percentage (0–100%), and frequency (0–50.0Hz). ​
• Robust Protection Features: Includes short-circuit protection on output terminals and reverse polarity protection on power supply terminals, enhancing safety during operation. ​
• Compact and Portable Design: With dimensions of 100 x 60 x 25 mm and a lightweight build, it's ideal for fieldwork and on-site signal testing. ​

Additional Specifications:

• Accuracy: Voltage Output:0.03V,Current:0.05Ma
• Voltage Range: 0–3.3V, 0–5V, 0–10V, ±10V, 1–5V, 2–10V
• Current: 0–20Ma, 4–20Ma, 0–22Ma
• Display: LED
