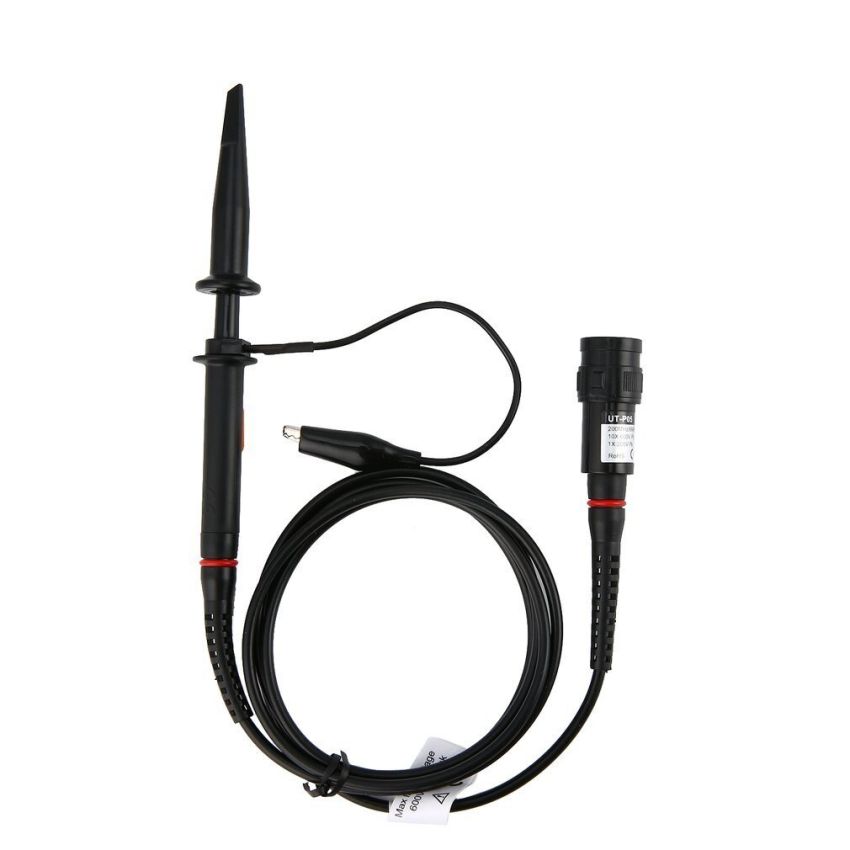

UNI-T UT-P05 Passive Oscilloscope Probe – 200MHz High-Bandwidth, 1X/10X Switchable, 600Vp-p Professional Testing Probe

The UNI-T UT-P05 is a high-performance passive probe designed for engineers and technicians working with high-speed digital systems and complex analog circuits. With a substantial 200MHz bandwidth, it allows for the precise visualization of fast rise times and high-frequency components that lower-tier probes might filter out. Whether you are debugging high-speed microcontrollers or analyzing switching transients in power converters, the UT-P05 delivers professional-level fidelity.A critical feature of the UT-P05 is its manual compensation adjustment. By tuning the trimmer located on the BNC connector, users can perfectly match the probe’s capacitance to the oscilloscope’s input. This step is vital for ensuring that square waves are displayed with sharp, clean edges, free from distortion. The probe’s ergonomic design includes a slim handle for better grip in tight spaces and a flexible, 1.2\text{-meter} cable that maintains signal integrity while providing a wide range of motion.Built to meet industrial safety and performance standards, the UT-P05 utilizes a standard BNC interface, ensuring compatibility with a wide array of test equipment, including UNI-T, Rigol, and Keysight. Its robust construction and gold-plated center pin ensure low contact resistance and long-term durability. For those requiring a high-frequency probe that balances precision with ruggedness, the UT-P05 is an essential upgrade for any advanced electronics laboratory.

Key Features:

Dual-Mode Attenuation (1X / 10X): Provides flexibility for various testing environments; select 1X for low-frequency sensitivity or 10X for high-speed, low-loading measurements.

Low Circuit Loading: In 10X mode, the probe provides a high 10\text{M}\Omega input resistance, ensuring minimal interference with the signal and preserving waveform accuracy.

High Voltage Tolerance: Rated for maximum input voltages up to 600Vp-p in 10X mode, suitable for power supply testing and industrial electronics.

Precision Frequency Compensation: Features an adjustable trimmer range of 10\text{pF} \sim 35\text{pF} to ensure a flat frequency response across different oscilloscope brands.

Comprehensive Accessory Kit: Includes a retractable hook tip for secure connections, color-coding rings for channel identification, and a grounding lead with a heavy-duty clip.
