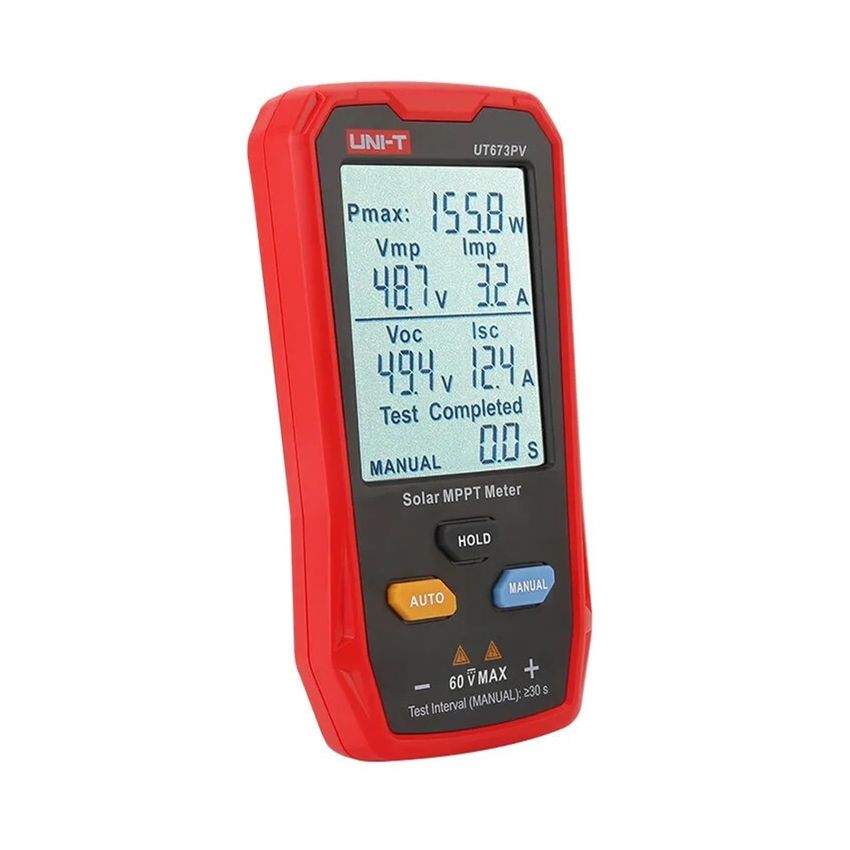

Uni‑T UT673PV Solar MPPT Meter – Photovoltaic Tester for Solar Panel Open Circuit Voltage, Short Circuit Current & Insulation Resistance

The UT673PV is a palm-sized solar panel diagnostic tool with built-in MPPT (Maximum Power Point Tracking) functionality. It enables fast and accurate measurements of key PV parameters—including maximum power (Pₘₐₓ), voltage at maximum power (Vₘₚ), current at maximum power (Iₘₚ), open-circuit voltage (Vₒ????), and short-circuit current (Iₛ????)—all displayed simultaneously on a large LCD. The device draws power directly from the solar panel via included MC4 leads—so no batteries are needed. Rugged and portable, it's ideal for PV installers, maintenance technicians, and panel manufacturers.

Key Features:

• Broad power range: Measures maximum power from 5 W up to 800 W with accuracy of ±(1% + 10).
• Complete solar parameters: Captures Pmax, Vmp (12–60 V), Imp (0–35 A), Voc (12–60 V), and Isc (0–35 A).
• Large LCD display: Clear color screen (approx. 52 × 66 mm) displays all parameters simultaneously.
• No external power required: Powered by the solar panel under test—no batteries needed.
• MC4-ready + protection features: Includes MC4 connectors and protections against reverse polarity, overvoltage, overcurrent, overtemperature, and overpower.
• Manual/Auto MPPT & data hold: Offers manual MPPT test and data hold functionality for more controlled diagnostics.
