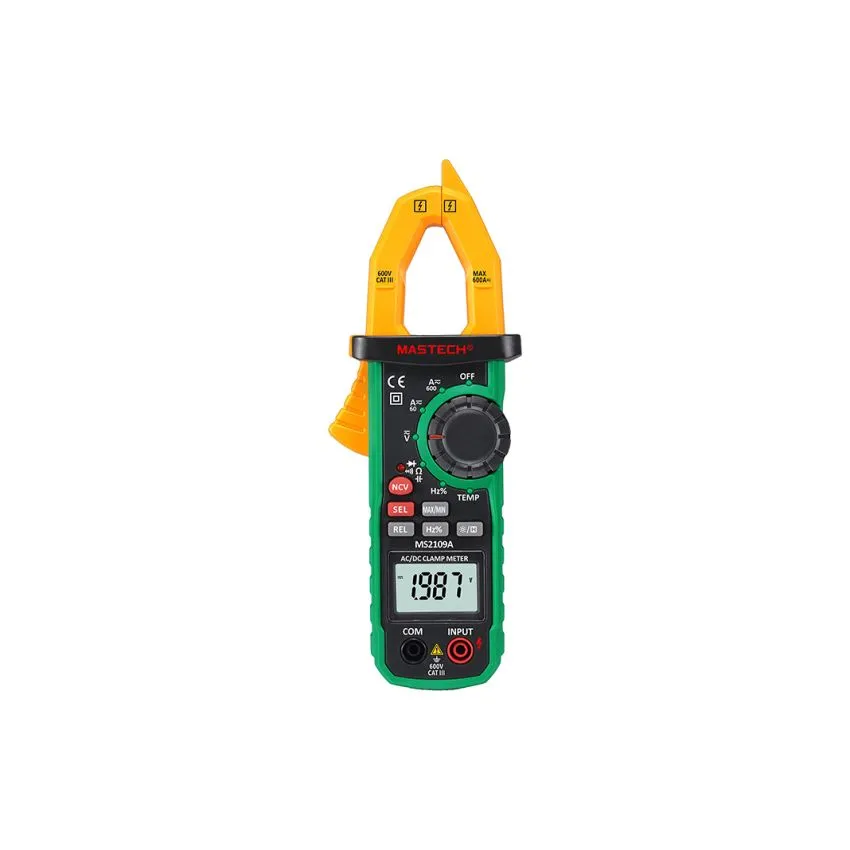

MS2109A, Digital AC/DC Clamp Meter – 600A AC/DC Current, 600V Voltage, True RMS Measurement

The MASTECH MS2109A Digital AC/DC Clamp Meter is a professional-grade, high-precision instrument designed for measuring AC/DC current, AC/DC voltage, resistance, capacitance, frequency, and temperature. It features True RMS technology, ensuring accurate readings even in fluctuating electrical environments. With a 6000-count LCD display, auto-ranging function, and non-contact voltage detection (NCV), this meter provides a versatile solution for electrical diagnostics. The CAT III 600V safety rating ensures safe operation in demanding industrial applications. The built-in flashlight and backlit display allow for easy usage in low-light conditions.

Key Features:

• True RMS Measurement – Provides accurate readings for both AC and DC circuits, ensuring precise measurements in non-linear loads.
• Wide Current and Voltage Range – Measures up to 600A AC/DC and 600V AC/DC, making it ideal for industrial and residential use.
• NCV (Non-Contact Voltage Detection) – Alerts users to live wires, enhancing safety when working with electrical circuits.
• 6000-Count LCD Display with Backlight – High-resolution display ensures easy reading of values in dark environments.
• Capacitance, Frequency, and Temperature Measurement – Versatile functions enable analysis of various electrical parameters.
• Auto Power-Off and Data Hold – Enhances battery life while allowing users to freeze readings for convenience.

Additional Specifications:

• AC Voltage Range: 6V, 60V, 600V
• AC Current Range: 60A, 600A
• DC Voltage Range: 600mV, 6V, 60V, 600V
• DC Current Range: 60A, 600A
