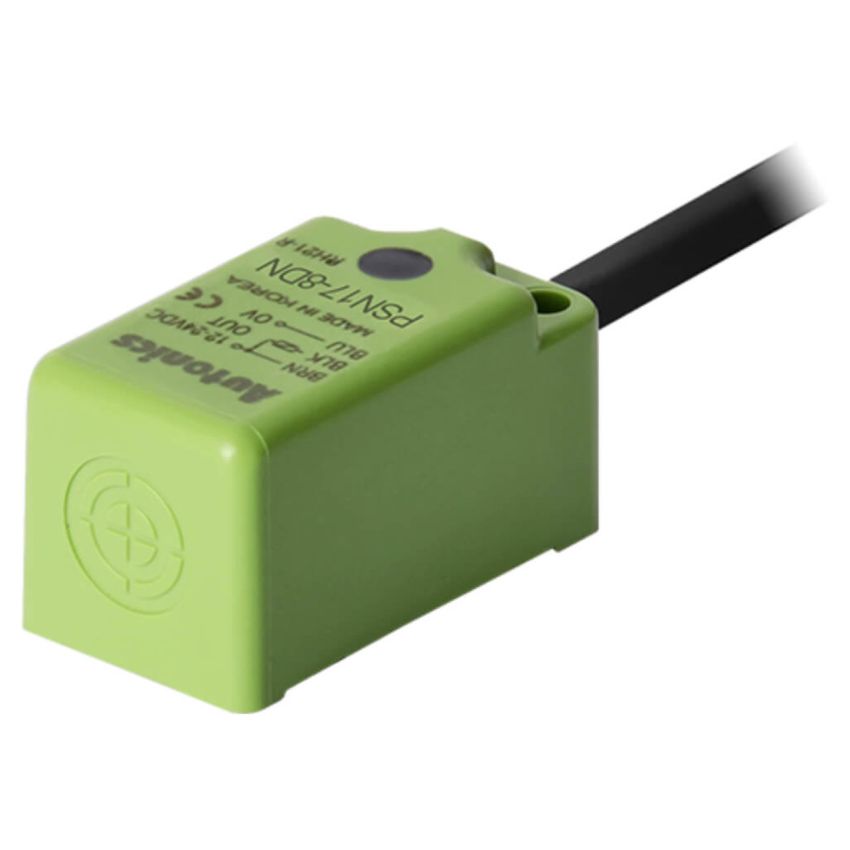

PSN17-8DN,Proximity Sensor,8mm,NP,3-Wire,12-24VDC

The PSN17-8DN Proximity Sensor offers a compact and highly efficient solution for proximity detection in various industrial applications. This sensor is designed with an 8mm detection range and operates on a 12 to 24V DC power supply. Featuring NPN output, this 3-wire sensor delivers reliable and stable performance even in demanding environments. Its rugged construction and IP67 rating make it ideal for use in conditions where moisture and dust are present.

Engineered for accuracy and reliability, the PSN17-8DN proximity sensor is widely used in automation systems, robotics, and industrial machinery. With its easy-to-install design and dependable performance, it is the perfect choice for those seeking a cost-effective yet high-performance sensor.

Key Features:

• High Sensitivity: Detects objects within an 8mm range for accurate proximity sensing in automation systems.
• Wide Operating Voltage: Supports a broad voltage range from 12 to 24V DC for flexible use in various systems.
• NPN Output Type: Features an NPN output configuration, suitable for a wide range of industrial automation applications.
• Durable Design: Rugged construction with IP67 protection, ensuring long-lasting performance in harsh environments.
• Easy Installation: Compact size with simple mounting for hassle-free installation in control panels or machinery.
• Reliable Performance: Ideal for use in manufacturing automation, robotics, and assembly lines where precise proximity detection is required.

Manufacturer: AUTONICS

Specifications

• Range: 0...8mm
• Output Configuration: NPN / NO
• Max. Operating Current: 0.2A
• Connection: Lead 2m
• IP Rating: IP67
• Operating Temperature: -25...70C
• Switching Frequency (max.): 0.2kHz
• Kind of Forehead: Embedded
• Body Dimensions: 18 x 18 x 35.6mm
• Body Material: Plastic
• Manufacturer Series: PSN
