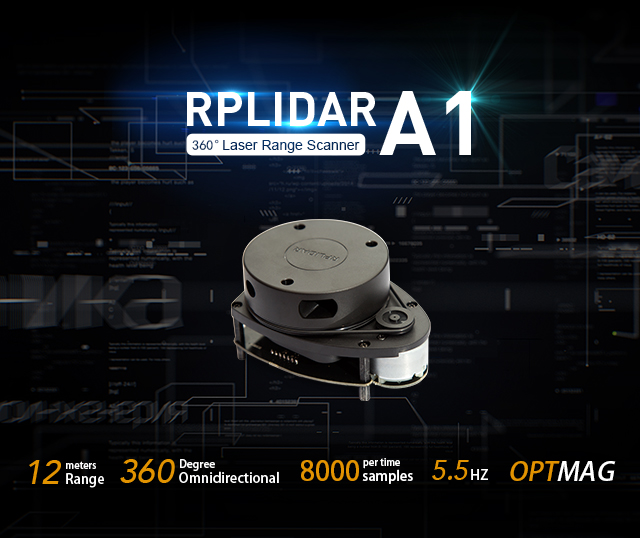

RPLIDAR A1M8-R6,Degree Laser Scanner Development Kit,360°

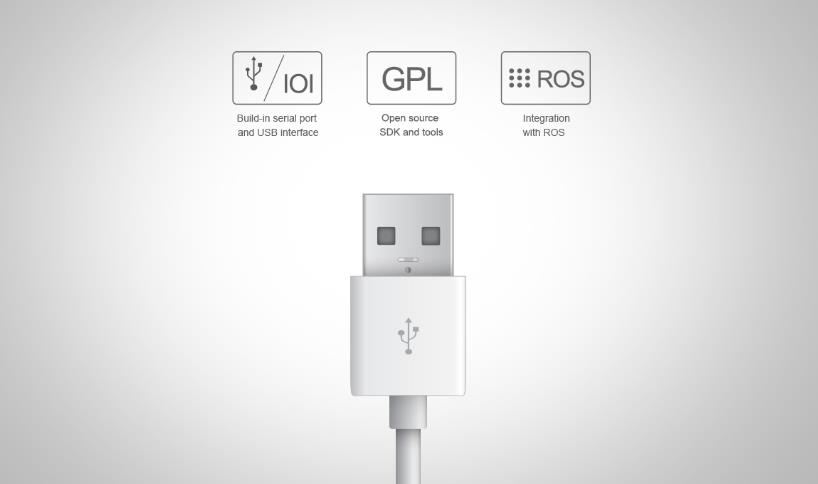

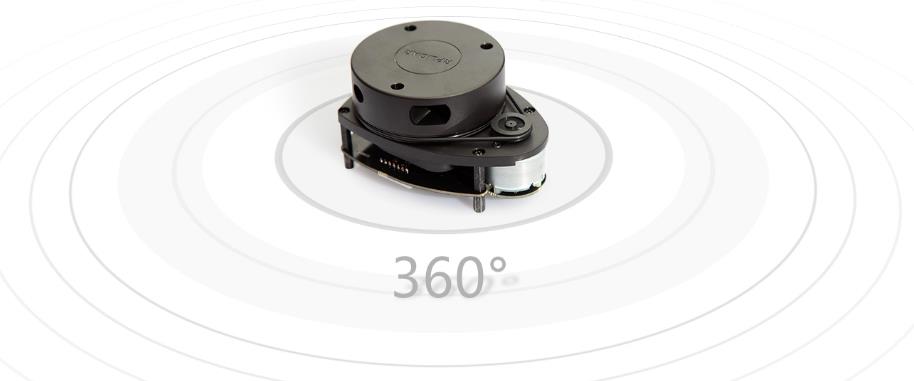

<h1><strong>Description :</strong></h1> -RPLIDAR A1 is a low-cost 360 degree 2D laser scanner solution developed by SLAMTEC -It can perform 360-degree scans within 12-meter range -Produces 2D point cloud data that can be used in mapping, localization, and object/environment modeling -Scanning frequency of 5.5 hz when sampling 1450 points each round, configurable up to 10 hz maximum -Based on laser triangulation ranging principle and uses high-speed vision acquisition and processing hardware -360 degree omnidirectional laser range scanning -OPTMAG technology integrates wireless power and optical communication to prolong the lifespan of the system -Configurable scan rate from 2-10Hz -Ideal for robot navigation and localization -Plug and Play, no coding required for use with a computer via micro USB cable. <h1><strong>-Specifications</strong>:</h1> •Model: RPLIDAR A1M8-R6 •Distance Range: A1M8-R4 and the blowing models 0.15 - 6 m A1M8-R5 0.15-12m •Angular Range: 0-360 degree •Distance Resolution: ＜0.5mm ＜1% of the distance (All distance range) •Angular Resolution: ≤1 degree •Sample Duration: 0.125 millisecond •Sample Frequency: ≥ 8000Hz •Scan Rate: 5.5Hz •Weight: 170g &nbsp; &nbsp;
