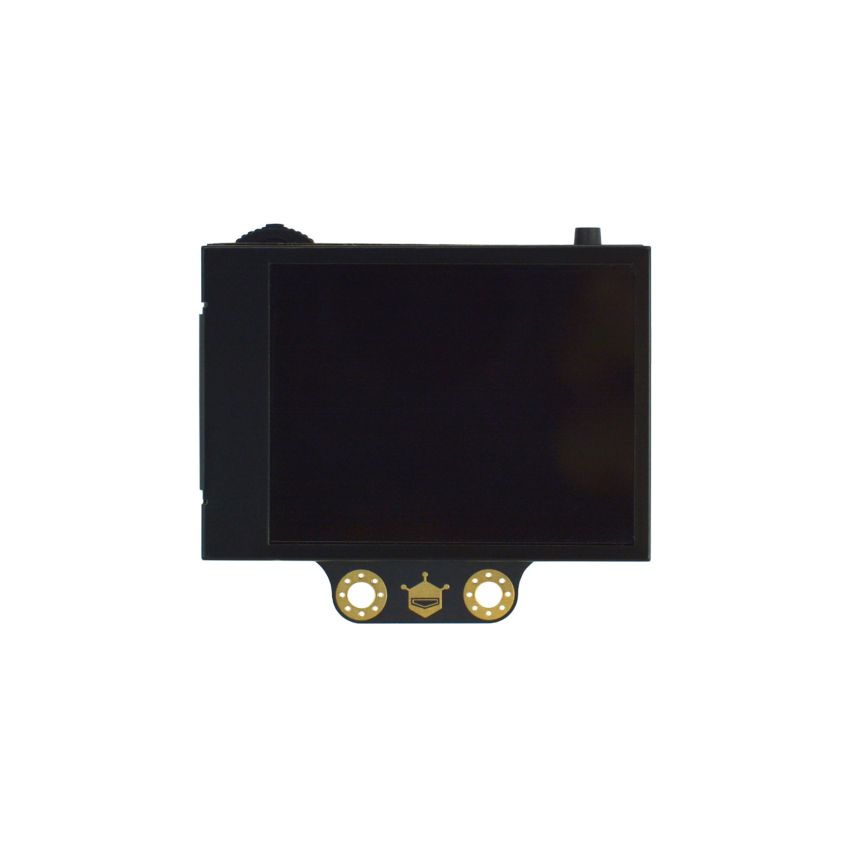

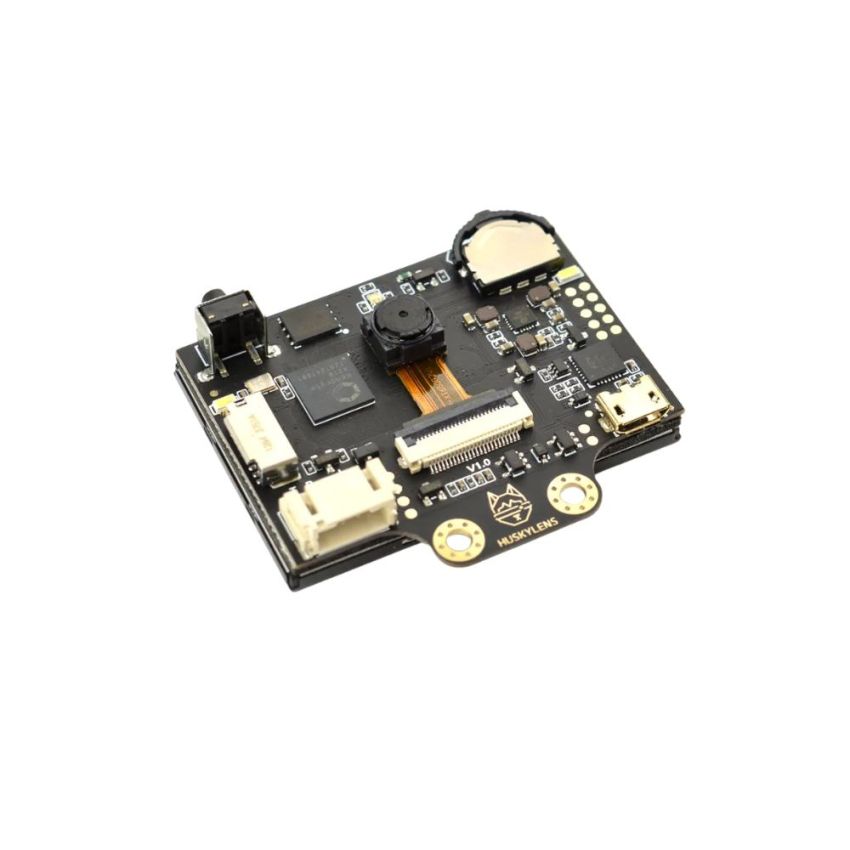

SEN0305 ,Gravity: HUSKYLENS - AI Machine Vision Sensor with Silicone Case

# HuskyLens Overview

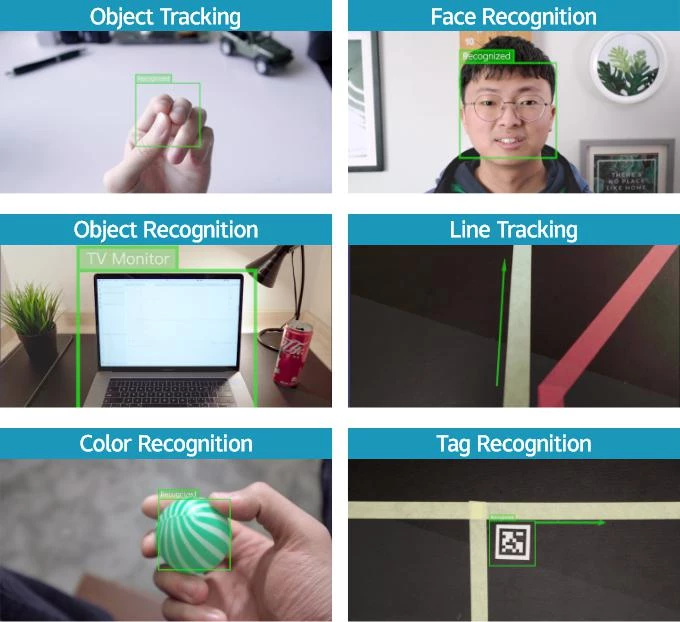

HuskyLens is an easy-to-use AI machine vision sensor with 7 built-in functions: face recognition, object tracking, object recognition, line tracking, color recognition, tag recognition, and object classification.

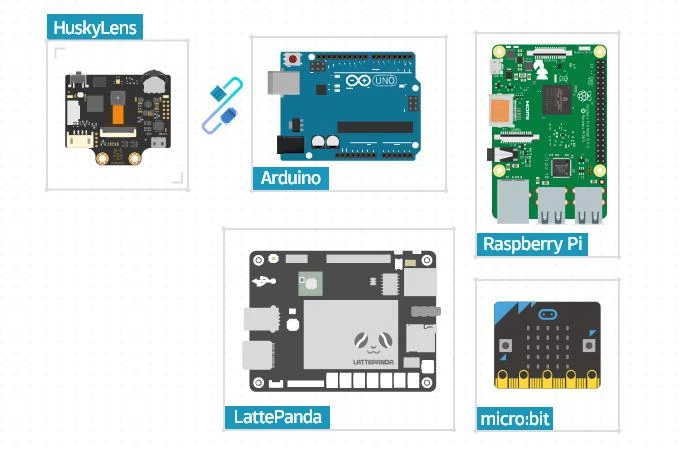

Through the UART / I2C port, HuskyLens can connect to Arduino and micro to help you make very creative projects without playing with complex algorithms.

Key Features

• Processor: Kendryte K210
• Image Sensor: OV2640 (2.0 Megapixel Camera)
• Supply Voltage: 3.3-5.0V
• Current Consumption (TYP): 320mA at 3.3V, 230mA at 5.0V (face recognition mode; 80 percent backlight brightness; fill light off)
• Interface: UART; I2C
• Display: 2.0-inch IPS screen with 320*240 resolution
• Built-in Algorithms: Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition, Object Classification

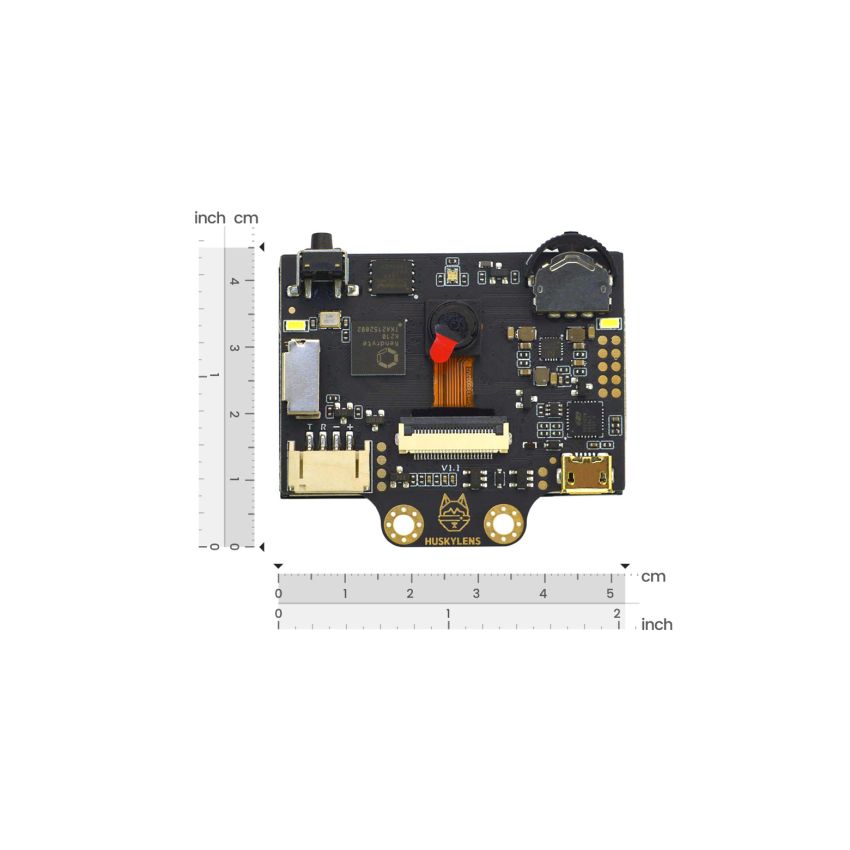

• Dimension: 52mm x 44.5mm (2.05 x 1.75 inch)

Connectors

• USB Connector: power supply for HuskyLens; connect to the computer to upgrade the firmware

4pin Connector in UART Mode

• Num 1 (Label: T): TX pin of HuskyLens
• Num 2 (Label: R): RX pin of HuskyLens
• Num 3 (Label: -): GND (Negative 0V)
• Num 4 (Label: +): VCC (Positive 3.3 - 5.0V)

4pin Connector in I2C Mode

• Num 1 (Label: T): SDA (Serial data line)
• Num 2 (Label: R): SCL (Serial clock line)
• Num 3 (Label: -): GND (Negative 0V)
• Num 4 (Label: +): VCC (Positive 3.3 - 5.0V)

Buttons

• Function Button: Dial left or right to switch different functions
• Learning Button:
  • Short press to learn the specified object
  • Long press to continuously learn the specified object from different angles and distances
  • Short press again to forget learned objects
• Function Button (Long Press): Enter the second-level menu (parameter setting). Dial left, right, or short press to set related parameters.
