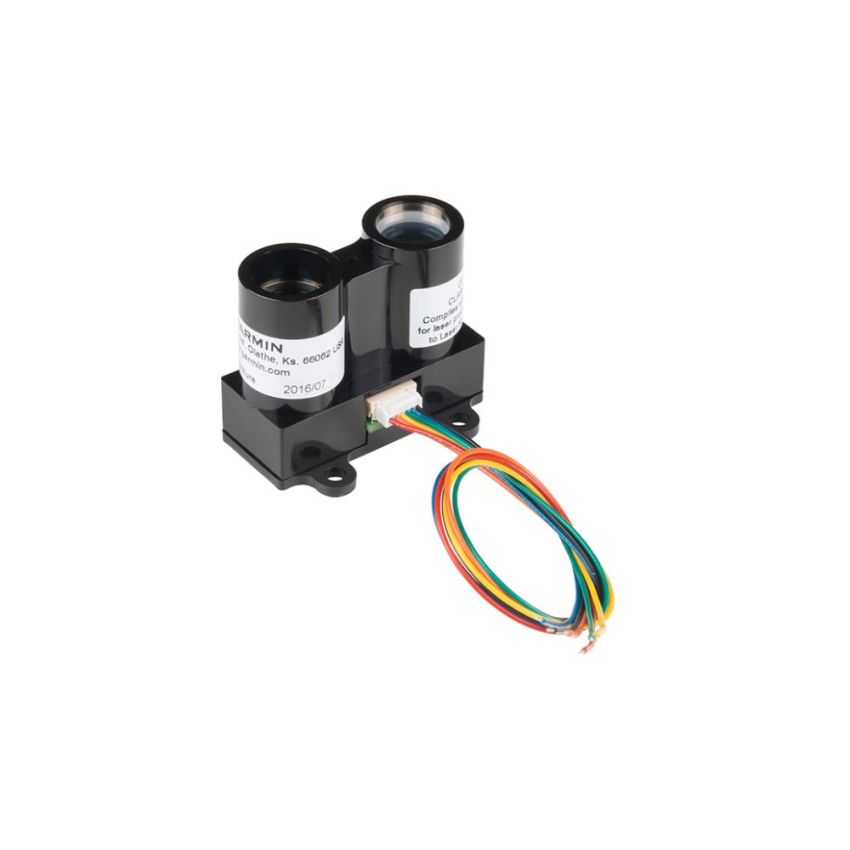

SEN-14032 , GARMIN LIDAR-Lite v3 Optical Distance Measurement Sensor

LIDAR-Lite v3: High-Performance Optical Distance Measurement Sensor The LIDAR-Lite v3 is a reliable and powerful ranging and proximity sensor designed for drones, robots, and unmanned vehicles. With its compact and lightweight design, it offers low power consumption while providing high accuracy and customizable performance. Ideal for applications where space and weight are critical, this sensor delivers efficient optical distance measurement using a single-chip signal processing solution.

Key Features:

• Reliable ranging and proximity sensing for drones, robots, and unmanned vehicles.
• Compact, lightweight, and energy-efficient design.
• Adjustable accuracy, operating range, and measurement time.
• Supports I2C or PWM communication for easy integration.
• Requires an external power source and microcontroller for operation.
• This sensor uses a single-chip signal processing solution and minimal hardware.  Specifications
• Unit Size (HxWxD): 40 x 48 x 20 mm (1.6 x 1.9 x 0.8)
• Weight: 22 g
• Resolution: 1 cm
• Accuracy: +/- 2.5 cm at distances >1 meter
• Range: 5 cm to 40 meters
• Update Rate: Up to 500 Hz
• Interface: I2C or PWM
• Operating Voltage: 4.75-5 VDC; 6 V Max
• Current Consumption: 105 mA (idle); 130 mA (continuous)
• Operating Temperature: -20 to 60C
• Laser Wavelength/Peak Power: 905 nm / 1.3 watts
• Beam Divergence: 8 m Radian
• Optical Aperture: 12.5 mm
