SEN0257 , Gravity Analog Water Pressure Sensor
JOD 18.00
In stock
Only 1 left


Guarantee safe & secure checkout
Guarantee safe & secure checkout

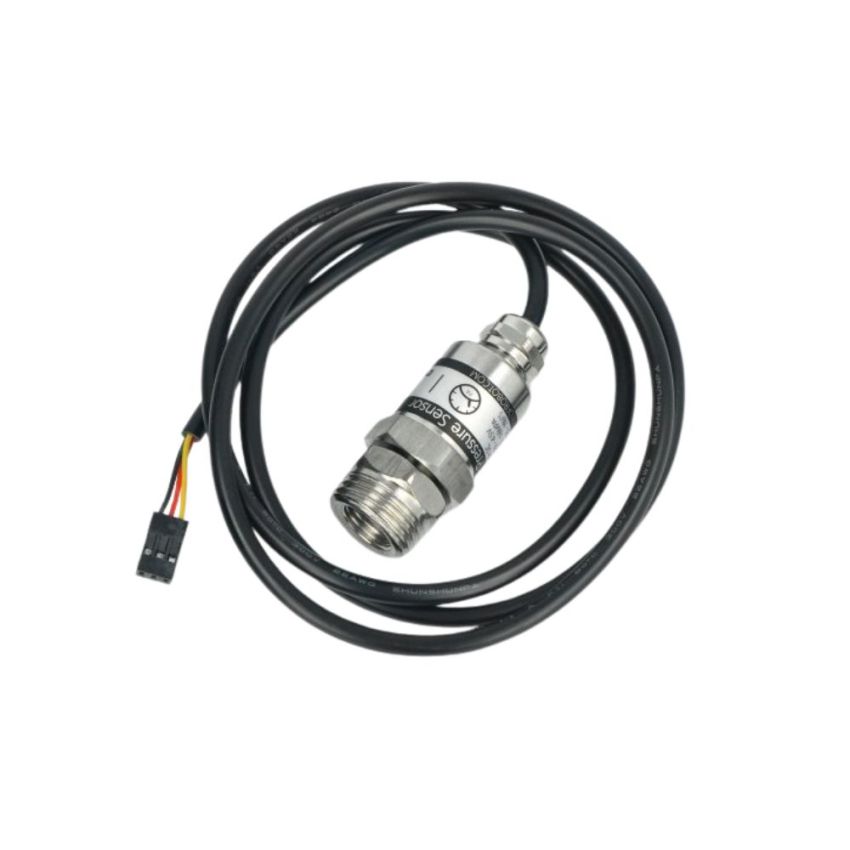

DFRobot Gravity Water Pressure Sensor
Key Features
- Supports water pressure detection of living environmental water systems, such as houses, gardens, and farms.
- Supports water pressure detection in outdoor environments, including rivers, lakes, and seas.
- Suitable for detecting pressure in tanks.
- Capable of liquid level detection in special situations.
Specifications
- Medium: Liquid/Gas without corrosion
- Wiring: Gravity 3-Pin (Signal-VCC-GND)
- Pressure Measurement Range: 0 - 1.6 Mpa
- Input Voltage: +5 VDC
- Output Voltage: 0.5 - 4.5 V
- Measurement Accuracy: 0.5% 1% FS (0.5%, 55C)
- Threadable Size: G1/4
- Adapter: G1/2 to G1/4
- Waterproof Level: IP68
- Operating Temperature: -20 - 85 degree C
- Response Time: <2.0 ms
- Quiescent Current: 2.8 mA
- Normal Operating Pressure: <2.0 Mpa
- Damaged Pressure: >3.0 Mpa
- Service Life: ≥10,000,000 times (10 million)
Sensor Type | Pressure Sensor |
---|---|
Current Consumption | 2.8mA |
Communication Interface | N |
