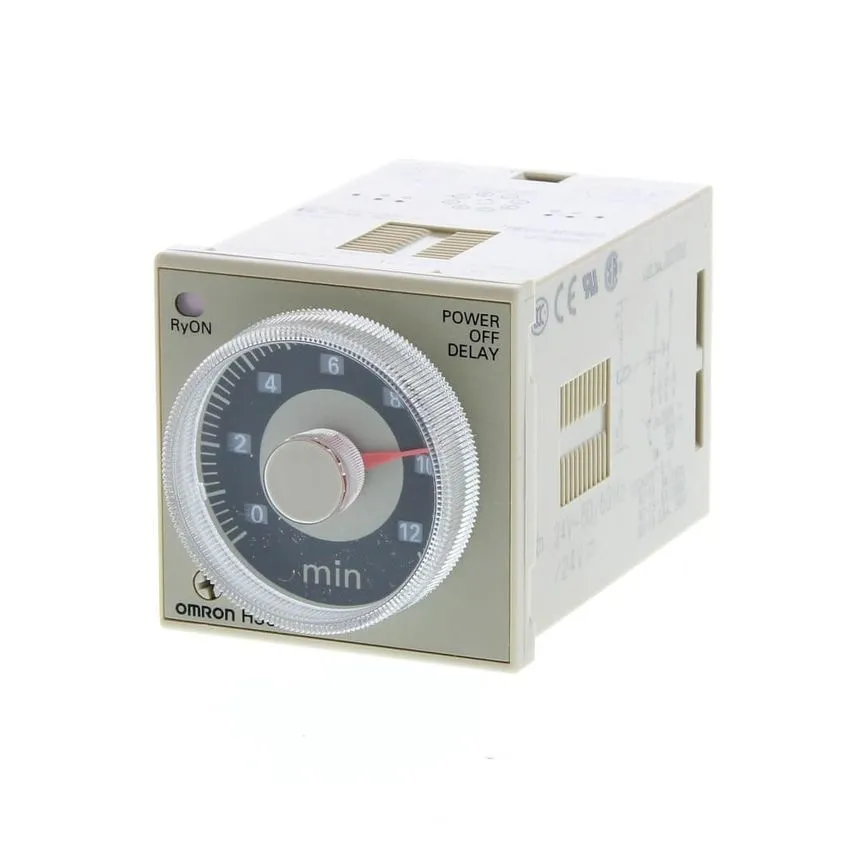

H3CR-H8L, Solid-State Power OFF-Delay Timer, 220VAC,

The Omron H3CR-H8L 220VAC is a DIN-mounted solid-state timer designed for power OFF-delay applications. It ensures controlled deactivation of loads by holding the output for a preset period after the input power is removed. This feature is essential in applications where cooldown, safety delay, or mechanical settling time is needed post power cut-off. Its compact design and reliable switching make it ideal for HVAC, lighting, motors, and process control systems.

Key Features:

• Power OFF-Delay Function – Maintains output for a set time after power removal.
• Selectable Time Range – Models available with delay up to 12 seconds (S-series) or 12 minutes (M-series).
• Universal Voltage Compatibility – Operates across 200–240VAC input range.
• Compact DIN 48×48 Format – Ideal for panel integration with minimal space.
• Reliable Mechanical Relay Output – Double-pole double-throw contacts rated at 5A.
• UL, CSA, and CE Compliant – Suitable for global industrial use.

Additional Specifications:

• Type: Power OFF Delay Timer
• Operating Supply Voltage: 200-240Vac At 50-60Hz
• Timing Range: 0.05-12Sec
• Display Type: Mechanical Dial With LED Indicators
• Accuracy: ±0.2%Fs
