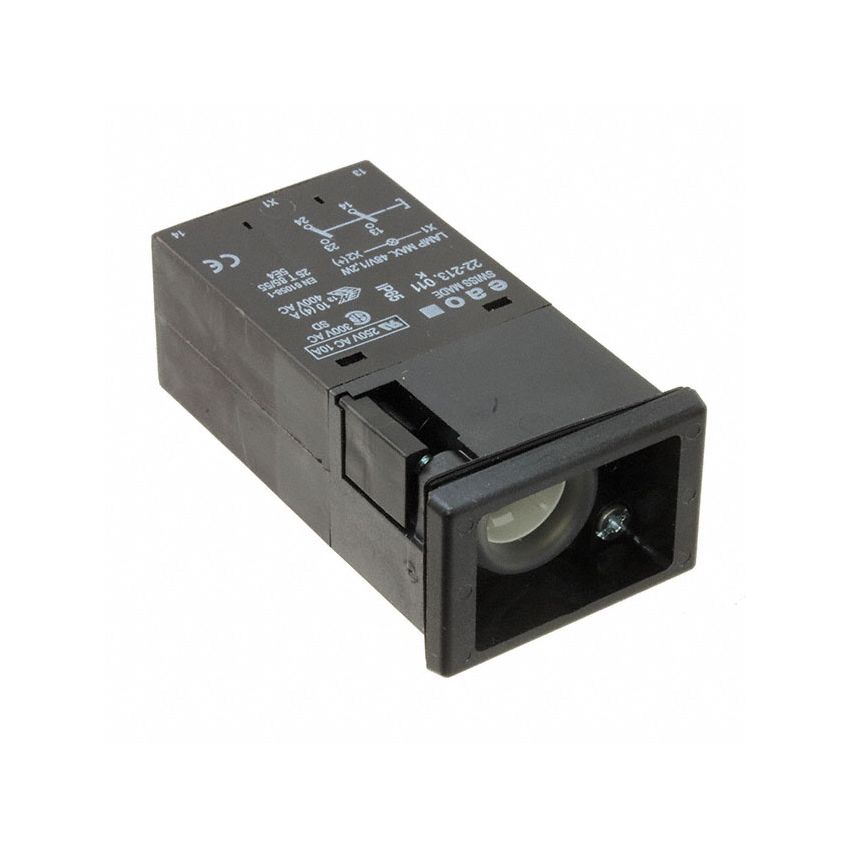

22-215.011, Illuminated Pushbutton Switch, Panel Mount

The EAO 22-215.011 is a high-quality illuminated pushbutton switch designed for industrial and commercial applications. Featuring a momentary SPDT contact configuration, it provides both NO and NC contacts, allowing for flexible control schemes. The rectangular flush actuator offers a modern aesthetic and is designed for ease of use. The integrated illumination enhances visibility, making it ideal for environments where status indication is crucial. Its robust construction ensures durability and reliable performance in various operating conditions.​

Key Features:

• SPDT Contact Configuration – Single-pole double-throw design provides both normally open (NO) and normally closed (NC) contacts for versatile control options.​
• Momentary Operation – Returns to its original position after actuation, suitable for applications requiring temporary contact.​
• Rectangular Flush Actuator – Offers a sleek, low-profile design that integrates seamlessly into control panels.​
• Illuminated Lens – Enhances visibility and provides status indication, improving user interaction.​
• Robust Construction – Built to withstand demanding industrial environments, ensuring long-term reliability.​
• Wide Operating Temperature Range – Functions effectively in temperatures ranging from -25°C to +55°C.​

Additional Specifications:

• Type: Pushbutton Switch
• Switch Function: Momentary
• Current Rating: 6A At 24Vdc
• Voltage Rating: 24Vdc
• Acutator Type: Rectangular Flush
