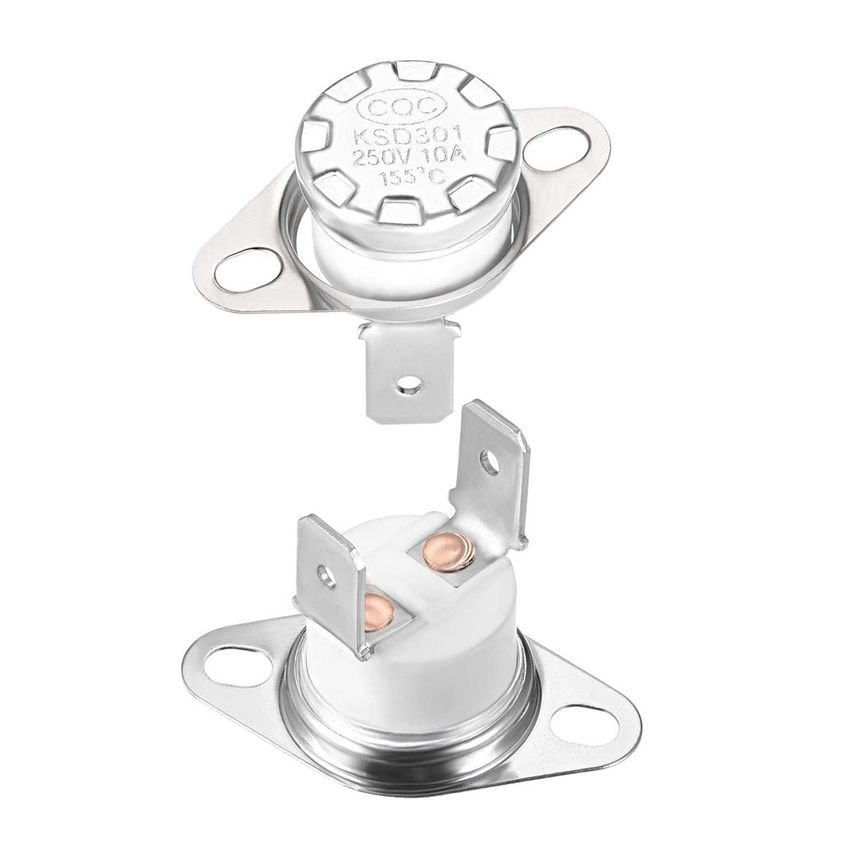

KSD301, 155°C Bimetal Thermostat Switch, Surface Mount Package

The KSD301 155°C Thermostat Switch is a snap-action bimetal thermal protector that activates at a preset temperature of 155°C, opening the circuit to protect electrical equipment from overheating. Once the temperature drops below a safe threshold, the contacts automatically return to the closed position. Designed for use in a wide range of temperature-sensitive applications, this thermostat switch is ideal for electric heaters, home appliances, power supplies, and battery packs. Its compact, flange-mount design makes installation quick and secure in most assemblies.

Key Features:

• Fixed Operating Temperature (155°C) – Opens circuit at precisely 155°C to prevent overheating.
• SPST Normally Closed Contact – Interrupts current flow when temperature is exceeded, resets automatically when cooled.
• High Voltage Tolerance – Supports up to 250V AC, suitable for household and industrial applications.
• Rated for 10A Current – Handles moderate power loads in thermal control circuits.
• Fast Thermal Response – Utilizes a reliable bimetal disc for consistent and rapid switching.
• Mounting Bracket Design – Includes integrated holes for easy and secure chassis or heat sink mounting.

Additional Specifications:

• Type: Bimetal Thermostat Switch
• Switch Function: NC
• Current Rating: 10A
• Voltage Rating: 250Vac
• Acutator Type: Temperature Sensitive Bimetal Disc
