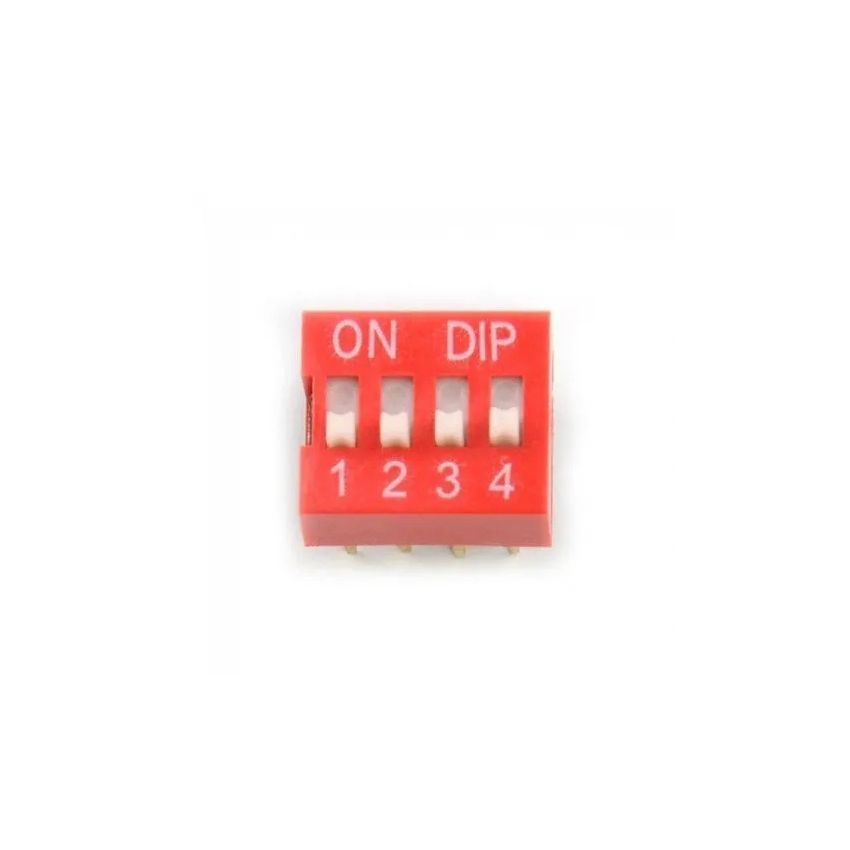

DIP-4WAY, DIP Switch 4-Position, Through-Hole Package

The DIP-4WAY Switch is a compact, low-profile switch offering four independent control points in a standard DIP (Dual Inline Package) footprint. Commonly used for address selection, device configuration, and logic state setting, this DIP switch is essential for embedded systems, consumer electronics, and industrial control boards. It provides dependable manual switching in a format that’s easy to implement and integrate, with simple slide actuation and robust mechanical life.

Key Features:

• 4 Independent SPST Switches – Provides four single-pole single-throw switches in a compact DIP format.
• Slide Actuator – Each position toggled with a tactile slide mechanism for clear ON/OFF indication.
• Standard 2.54mm Pitch – Compatible with most breadboards and standard PCB layouts.
• Color-Coded Red Housing – High-visibility red body helps with identification during prototyping or assembly.
• Reliable Gold/Tin Plated Contacts – Ensures long-term conductivity and durability across multiple cycles.
• Through-Hole Mounting Style – Simplifies soldering and integration into conventional PCBs.

Additional Specifications:

• Type: DIP Switch
• Switch Function: SPST
• Current Rating: 25Ma
• Voltage Rating: 24Vdc
• Acutator Type: Slide
