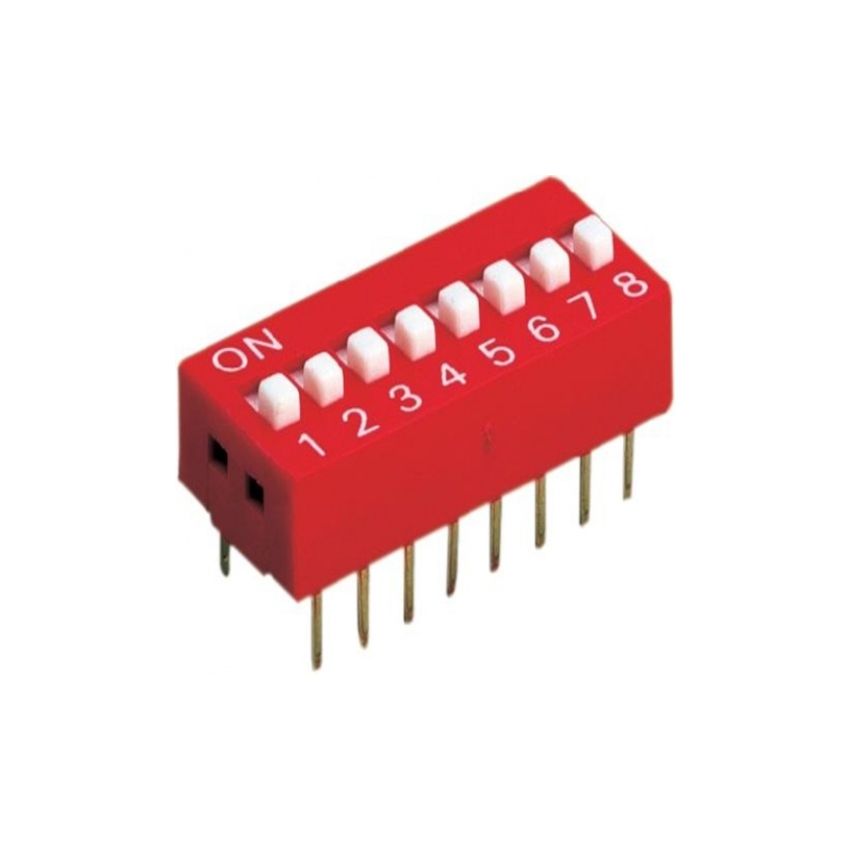

DIP-8WAY, DIP Switch 8-Position, Through-Hole Package

The DIP-8WAY Switch is a compact, multi-pole manual switch used primarily for user-configurable settings in embedded systems and electronics. With 8 SPST slide switches in one housing, it allows for binary or individual control signals across multiple inputs. These switches are widely used in address setting for microcontrollers, device ID configuration, and mode selection. The through-hole design and 2.54mm pitch make it ideal for standard PCB applications, DIY kits, and industrial boards.

Key Features:

• 8-Position Configuration – Offers 8 independent SPST switches in one compact DIP package.
• Slide Actuator Style – Each switch is controlled via a precision slide mechanism for tactile feedback.
• Standard 2.54mm Pitch – Compatible with breadboards and standard PCB layouts.
• High Reliability Contacts – Gold or tin-plated contacts ensure long-term reliability and stable connections.
• Through-Hole Mounting – Designed for easy integration with PCBs using traditional soldering.
• Compact Form Factor – Saves board space while offering multiple control lines in a single package.

Additional Specifications:

• Type: DIP Switch
• Switch Function: SPST
• Current Rating: 25Ma
• Voltage Rating: 24Vdc
• Acutator Type: Slide
