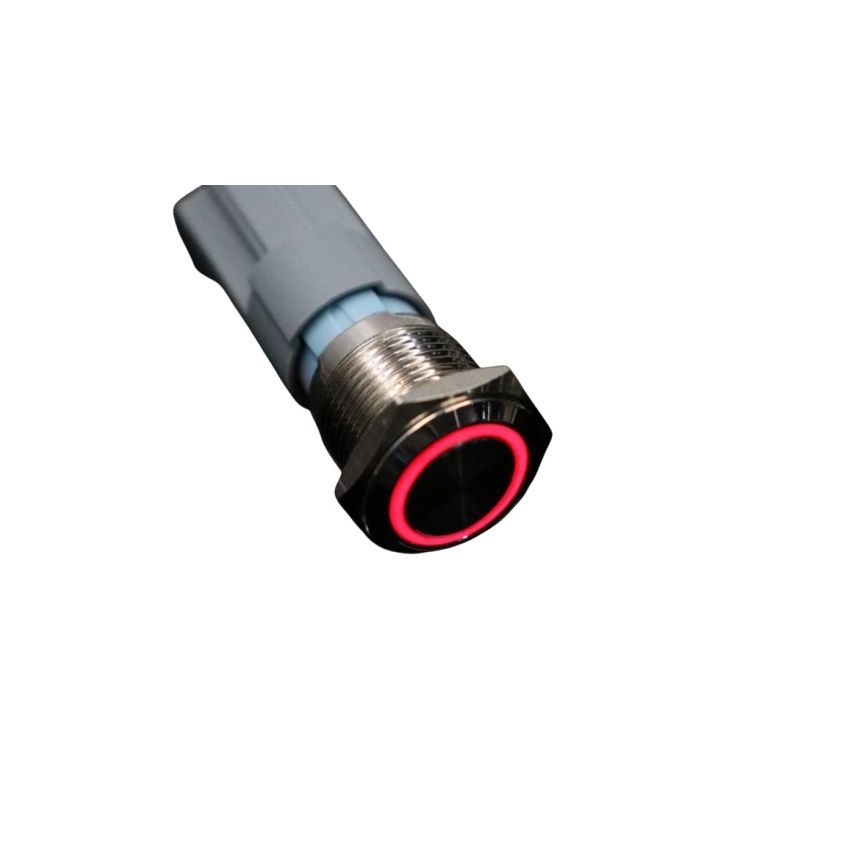

19AP11DZ, Illuminated Pushbutton Switch, Panel Mount Package

The 19AP11DZ is a high-quality, illuminated pushbutton switch designed for industrial and commercial applications requiring reliable ON/OFF control. Featuring a momentary operation with a reset function, this switch provides dependable performance in various control circuits. The integrated red LED illumination operates within a 12V–24V range, offering clear visibility in diverse lighting conditions. Its 19mm mounting size and IP65-rated front panel make it suitable for environments where space is limited and protection against dust and water is essential.​

Key Features:

• SPST Contact Configuration – Single-pole single-throw design allows for straightforward ON/OFF control.​
• Momentary Operation with Reset Function – Push-to-activate and release-to-reset mechanism ensures precise operation.​
• Red LED Illumination (12V–24V) – Integrated LED provides clear visual indication of switch status.​
• 19mm Mounting Size – Standard size suitable for various panel installations.​
• Durable Metal Construction – Built with robust materials to withstand demanding environments.​
• Water-Resistant Design (IP65 Rated) – Offers protection against dust and water, ensuring durability in harsh conditions.​

Additional Specifications:

• Type: Illuminated Pushbutton Switch​
• Switch Function: Momentary
• Current Rating: 5A At 250Vac
• Voltage Rating: 12-24Vdc
• Acutator Type: Round
