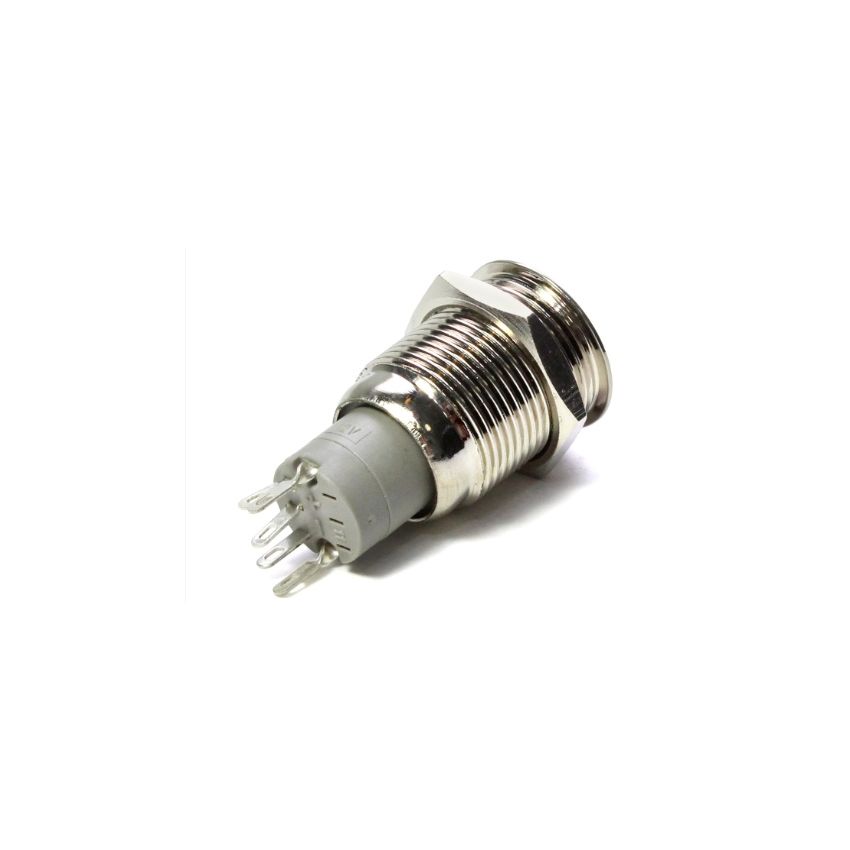

16A-P11DZ, Illuminated Pushbutton Switch, Panel Mount Package

The 16A-P11DZ is a high-quality, illuminated pushbutton switch designed for industrial and commercial applications requiring reliable ON/OFF control. Featuring a latching mechanism, this switch maintains its state until actuated again, making it ideal for applications where a maintained contact is necessary. The integrated red LED illumination operates within a 12V–24V range, providing clear visual feedback of the switch status. Its compact 16mm mounting size and IP65-rated front panel make it suitable for environments where space is limited and protection against dust and water is essential.​

Key Features:

• SPST Contact Configuration – Single-pole single-throw design allows for straightforward ON/OFF control.​
• Latching (Self-Locking) Mechanism – Maintains its position after being pressed, ensuring consistent operation.​
• Red LED Illumination (12V–24V) – Integrated LED provides clear visual indication of switch status.​
• Compact 16mm Mounting Size – Space-saving design suitable for panels with limited space.​
• Durable Metal Construction – Built with robust materials to withstand demanding environments.​
• Water-Resistant Design (IP65 Rated) – Offers protection against dust and water, ensuring durability in harsh conditions.​

Additional Specifications:

• Type: Illuminated Pushbutton Switch​
• Switch Function: Latching
• Current Rating: 16A At 12-24Vdc
• Voltage Rating: 12-24Vdc
• Acutator Type: Round
