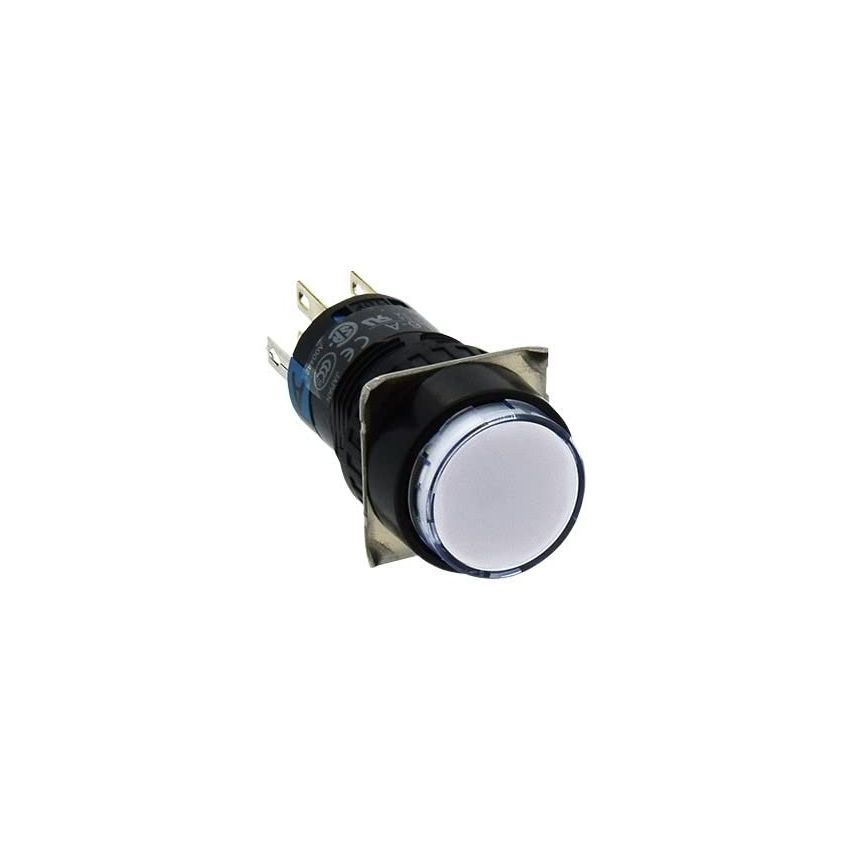

AL6Y-M1, Reset Round Pushbutton Switch.24V,White

The AL6Y-M1 is a high-quality, illuminated pushbutton switch designed for industrial control applications. Featuring a momentary action with a reset function, this switch provides reliable performance in various control circuits. The integrated white LED illumination operates at 24V AC/DC, offering clear visibility in diverse lighting conditions. Its compact 16mm mounting size and IP65-rated front panel make it ideal for environments where space is limited and protection against dust and water is essential. The gold-clad silver contacts ensure dependable low-level switching, making it suitable for a wide range of applications.​

Key Features:

• SPDT Contact Configuration – Single-pole double-throw design allows for versatile circuit control.​
• Momentary Action with Reset Function – Push-to-activate and release-to-reset mechanism ensures precise operation.​
• LED Illumination (White, 24V AC/DC) – Integrated LED provides clear visual indication, enhancing user interface.​
• Compact 16mm Mounting Size – Space-saving design suitable for panels with limited space.​
• IP65 Rated Front Panel – Offers protection against dust and water, ensuring durability in harsh environments.​
• Gold-Clad Silver Contacts – Ensures reliable low-level switching and long operational life.​

Additional Specifications:

• Type: Illuminated Pushbutton Switch​
• Switch Function: Momentary
• Current Rating: 3A At 250Vac,250Vdc
• Voltage Rating: 250Vac,250Vdc
• Acutator Type: Round
