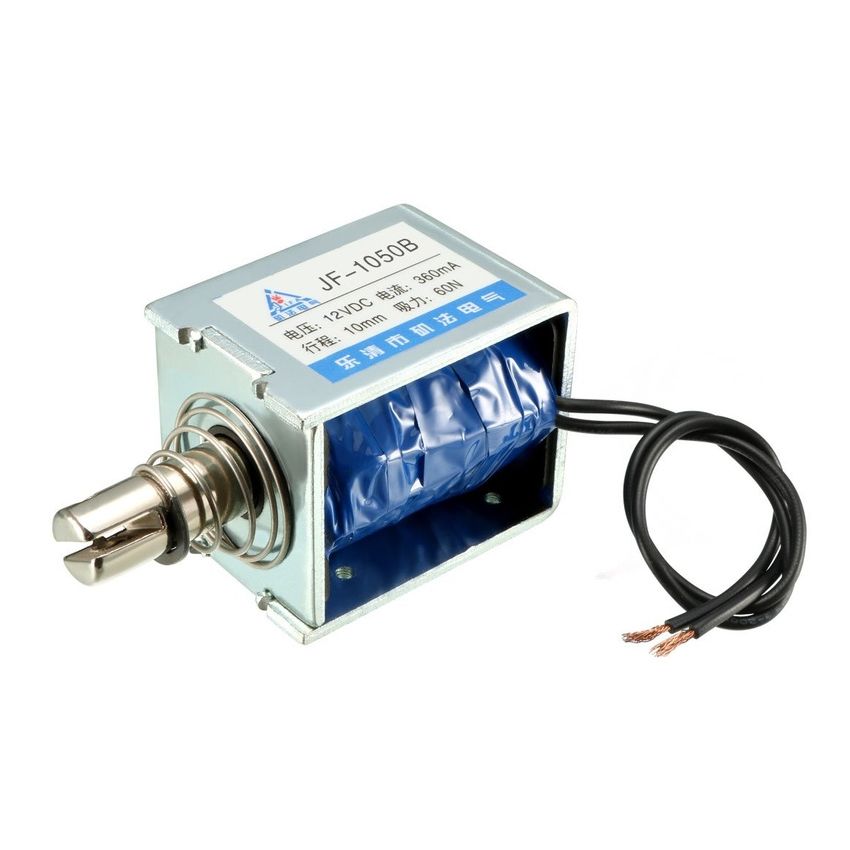

JF-1050B, Push-Pull Solenoid, 12VDC, 10mm Stroke

The JF-1050B is a compact push-pull solenoid designed for precision control applications. Operated at 12VDC, it delivers high performance with a stroke length of 10mm and a powerful actuation force suitable for automatic locks, vending machines, and robotic systems. The metal body offers excellent durability and heat resistance, while the spring-loaded mechanism ensures consistent return action.

Key Features:

• Rated for 12VDC operation with 60W power consumption
• Push-pull action ideal for locking, ejecting, or mechanical actuation
• 10mm stroke length with spring return
• Compact and durable metal casing for reliable performance
• Low current draw: 360mA typical
• Easy wiring with dual leads for DC input

Additional Specifications:

• Type: Push Pull Solenoid
• Voltage Rated: 12Vdc
• Power (Watts): 60W
• Stroke Length: 10Mm
