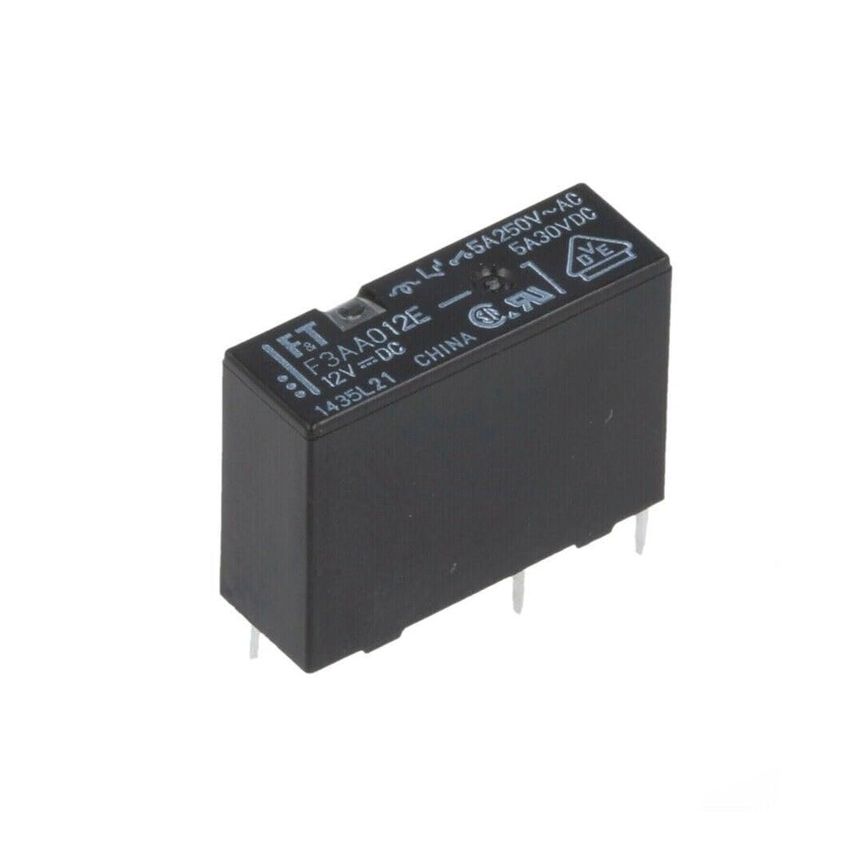

Fujitsu FTR-F3AA012E Slim Power Relay, SPST-NO, 12VDC Coil, 5A, PCB Mount

The Fujitsu FTR-F3AA012E is a slim, single-pole, single-throw normally open (SPST-NO) electromagnetic relay designed for applications where space is at a premium. With a 12 VDC coil and a maximum switching capacity of 5 A, this relay is suitable for controlling various electrical loads in industrial and consumer electronics. Its compact design and high isolation voltage make it a reliable choice for designers seeking efficiency and safety in their circuits.​

Key Features:

• Slim Profile: Measuring only 7 mm in width, ideal for high-density PCB applications.​
• High Switching Capacity: Handles up to 5 A at 250 VAC or 30 VDC, suitable for various resistive loads.​
• Low Power Consumption: Operates efficiently with a coil power consumption of 200 mW.​
• Wide Operating Temperature Range: Functions effectively between -40°C and +70°C, accommodating diverse environments.​
• High Dielectric Strength: Provides 4,000 VAC isolation between coil and contacts, ensuring safety and reliability.​
• RoHS Compliant: Manufactured in accordance with environmental standards for hazardous substances.​

Additional Specifications:

• Type: Electromagnetic Power Relay
• Number of Channels: 1
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 5A
• Switching Voltage (VAC)/Current: 250Vac At 5A
