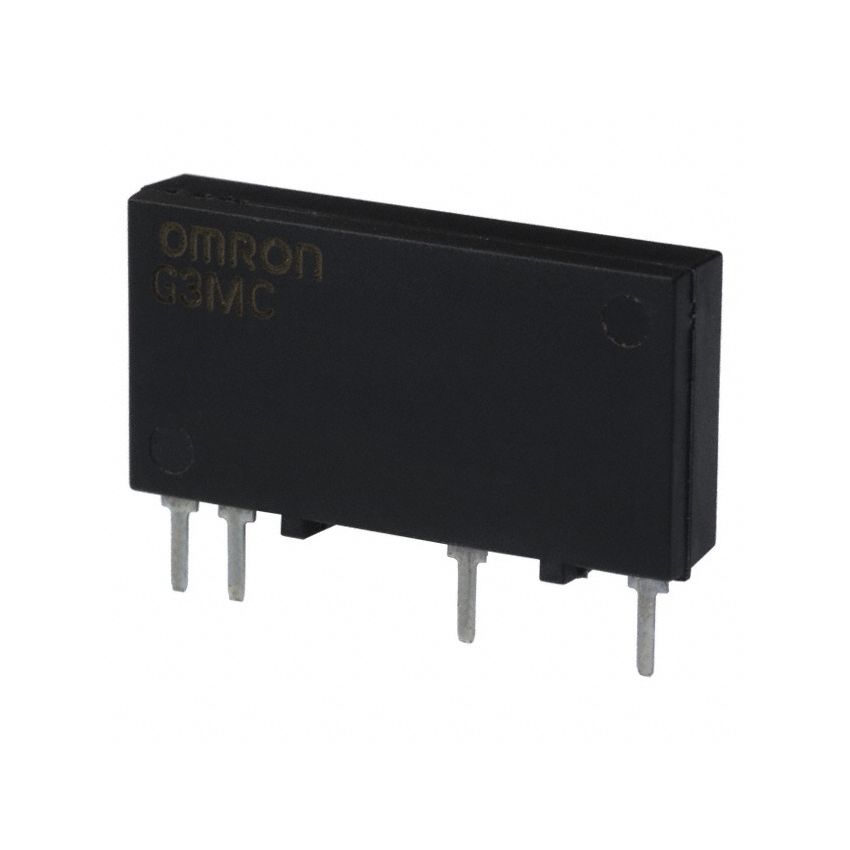

G3MC-201PL-VD Solid State Relay, 12VDC Input, 240VAC Output, 1A, PCB Mount

The Omron G3MC-201PL-VD is a compact solid-state relay designed for reliable switching of AC loads up to 1A at 240VAC. Its slim profile makes it suitable for applications where space is limited. The relay features phototriac isolation, a built-in snubber circuit, and a zero-cross function to reduce electrical noise. It's ideal for use in industrial automation, HVAC systems, and other control applications requiring silent and efficient switching.​

Key Features:

• Compact Slim Design: With a width of only 4.5 mm, it's ideal for high-density PCB applications.​
• Phototriac Isolation: Ensures electrical isolation between input and output for enhanced safety.​
• Built-in Snubber Circuit: Protects against voltage spikes, enhancing durability.​
• Zero-Cross Function: Minimizes electrical noise during switching operations.​
• High Dielectric Strength: Offers 2,500 VAC isolation between input and output.​
• Wide Operating Temperature Range: Functions effectively between -30°C and +80°C.​

Additional Specifications:

• Type: Solid State Relay
• Number of Channels: 1
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 24Vac At 1A
