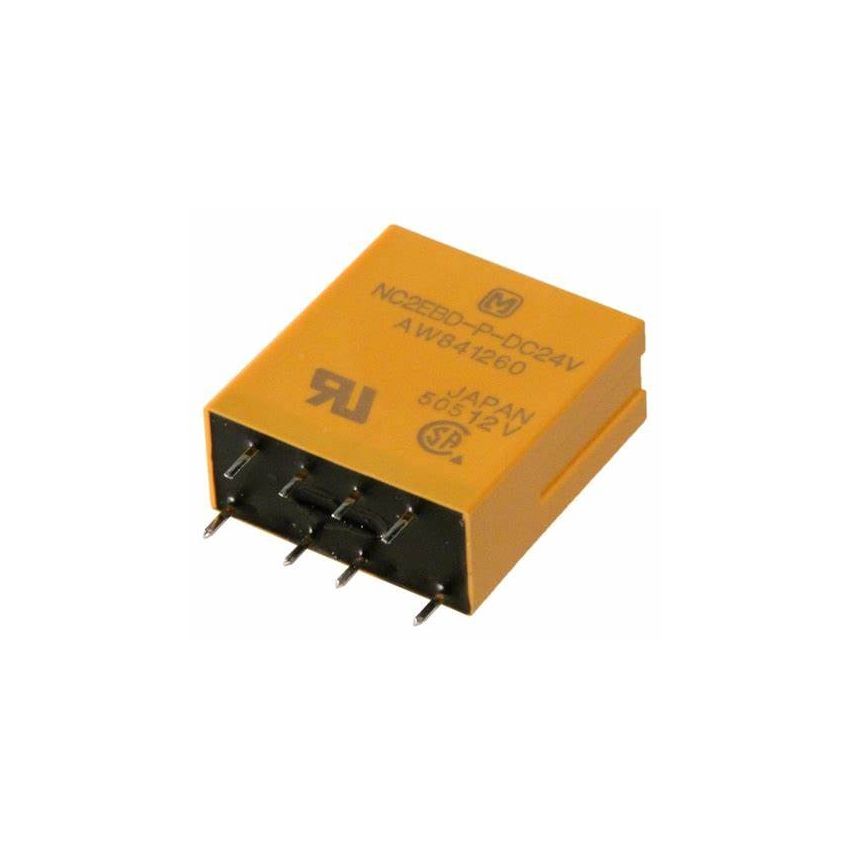

NC2EBD-DC24V Slim Power Relay, DPDT, 24VDC Coil, 5A, PCB Mount

The Panasonic NC2EBD-DC24V is a slim, high-performance power relay designed for applications where space is at a premium. Its compact profile allows for high-density mounting on PCBs, making it suitable for use in industrial control panels, HVAC systems, and telecommunications equipment. With a 24VDC coil and dual Form C contacts, this relay offers reliable switching for both AC and DC loads. Its robust construction and compliance with major safety standards make it a dependable choice for various applications.​

Key Features:

• Compact Slim Design: At just 10.9 mm in height, the NC2EBD-DC24V is ideal for high-density PCB applications.​
• High Reliability: Equipped with bifurcated AgNi contacts, ensuring stable contact resistance and long operational life.​
• Dual Form C (DPDT) Contacts: Provides two changeover contacts for versatile switching applications.​
• Low Power Consumption: Operates efficiently with a nominal coil power of 360 mW.​
• Wide Operating Temperature Range: Functions effectively between -40°C and +70°C, accommodating various environments.​
• Compliance with Safety Standards: Certified by UL and CSA, ensuring adherence to international safety norms.​

Additional Specifications:

• Type: Slim Power Relay
• Number of Channels: 2
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 5A
• Switching Voltage (VAC)/Current: 250Vac At 5A
