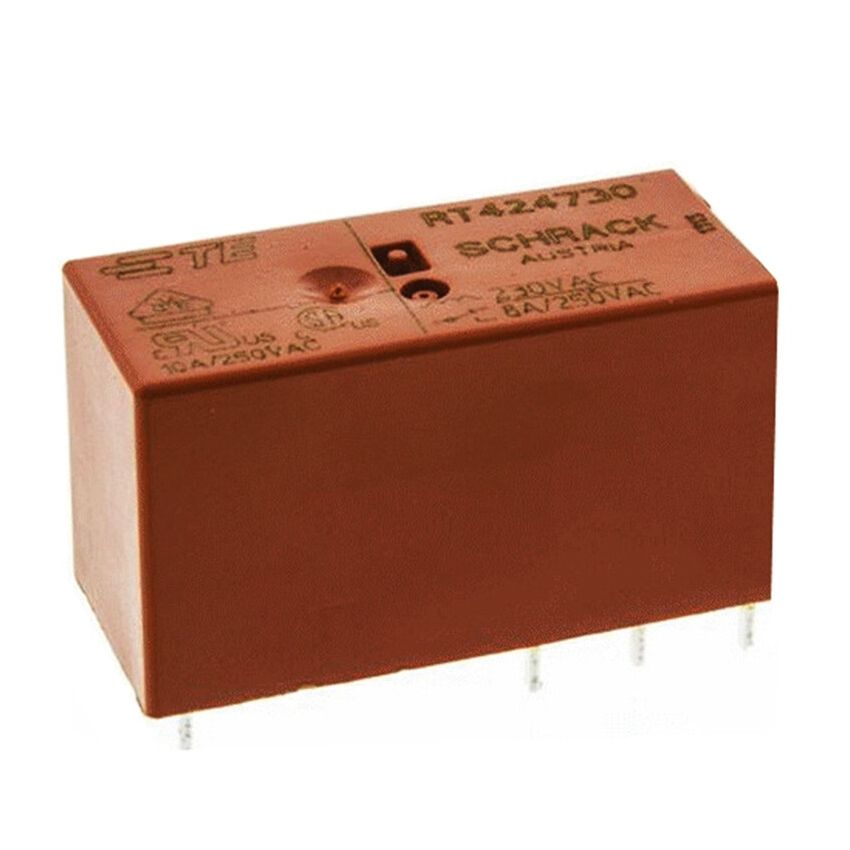

RT424730 Schrack Power Relay, DPDT, 230VAC Coil, 8A, PCB Mount​

The TE Connectivity RT424730 is a general-purpose power relay from the Schrack RT2 series, designed for reliable performance in industrial and commercial applications. Featuring a 230 VAC coil and dual Form C (DPDT) contacts, this relay supports switching currents up to 8 A at 250 VAC. Its compact footprint and PCB through-hole mounting make it ideal for integration into control systems, automation equipment, and power management solutions.​

Key Features:

• Dual Form C Contacts (DPDT): Provides two changeover contacts for versatile switching applications.​
• High Dielectric Strength: Offers 5,000 V RMS isolation between coil and contacts, ensuring safety and reliability.​
• Compact Design: Measures 29 mm × 12.7 mm × 15.7 mm, suitable for space-constrained PCB layouts.​
• Robust Contact Material: Utilizes AgNi 90/10 for enhanced conductivity and durability.​
• Flux-Resistant Enclosure: Designed to withstand soldering processes without compromising internal components.​
• Wide Operating Temperature Range: Functions effectively between -40°C and +70°C, accommodating various environments.​

Additional Specifications:

• Type: General Purpose Power Relay
• Number of Channels: 2
• Coil Voltage: 230Vac
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 250Vac At 8A
