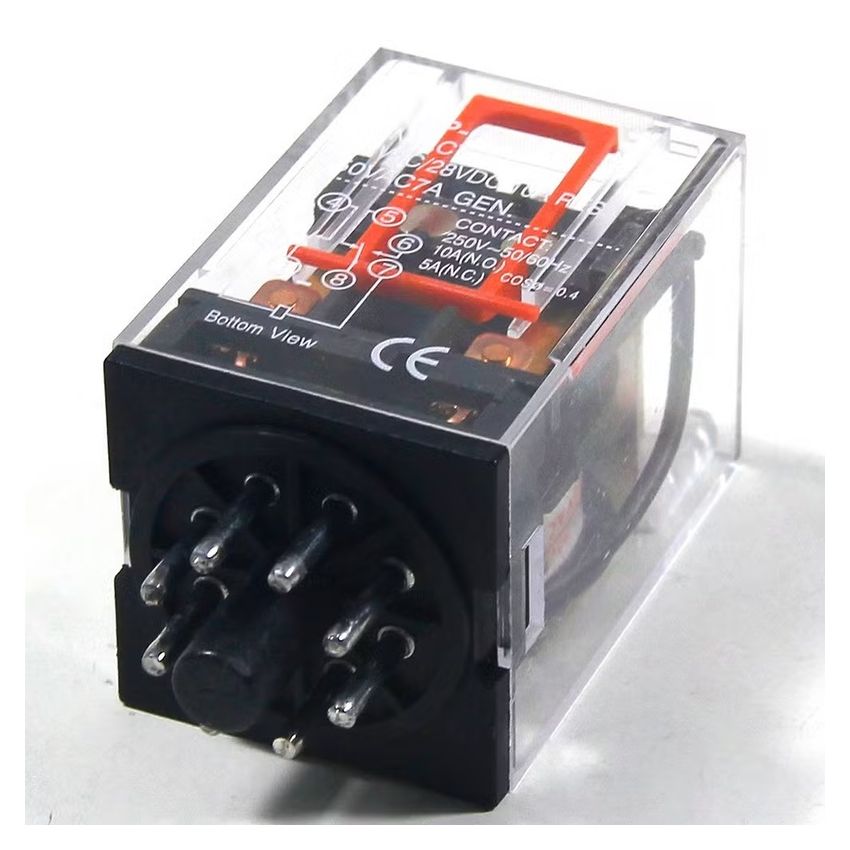

MK3P-I 12VDC, General-Purpose Relay, Plug-In Type

The MK3P-I 12VDC is a general-purpose electromechanical relay featuring a 12VDC coil and 3PDT contact configuration. Its robust design and high switching capacity make it ideal for a wide range of applications, including industrial automation, control panels, and machinery. The relay's built-in mechanical indicator provides easy visual confirmation of its operating status. Its standard 11-pin layout ensures compatibility with common relay sockets like the PF113A-E.​

Key Features:

• High Switching Capacity: Handles up to 10A at 250VAC or 28VDC, suitable for various applications​
• High Switching Capacity: Handles up to 10A at 250VAC or 28VDC, suitable for various applications​
• Built-In Operation Indicator: Mechanical indicator for visual confirmation of relay status​
• Standard 11-Pin Layout: Compatible with PF113A-E and similar sockets​
• Durable Construction: Designed for reliable performance in industrial environments​
• Long Electrical Life: Minimum of 100,000 electrical operations​

Additional Specifications:

• Type: Electromechanical Relay​
• Number of Channels: 3
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: 28Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A
