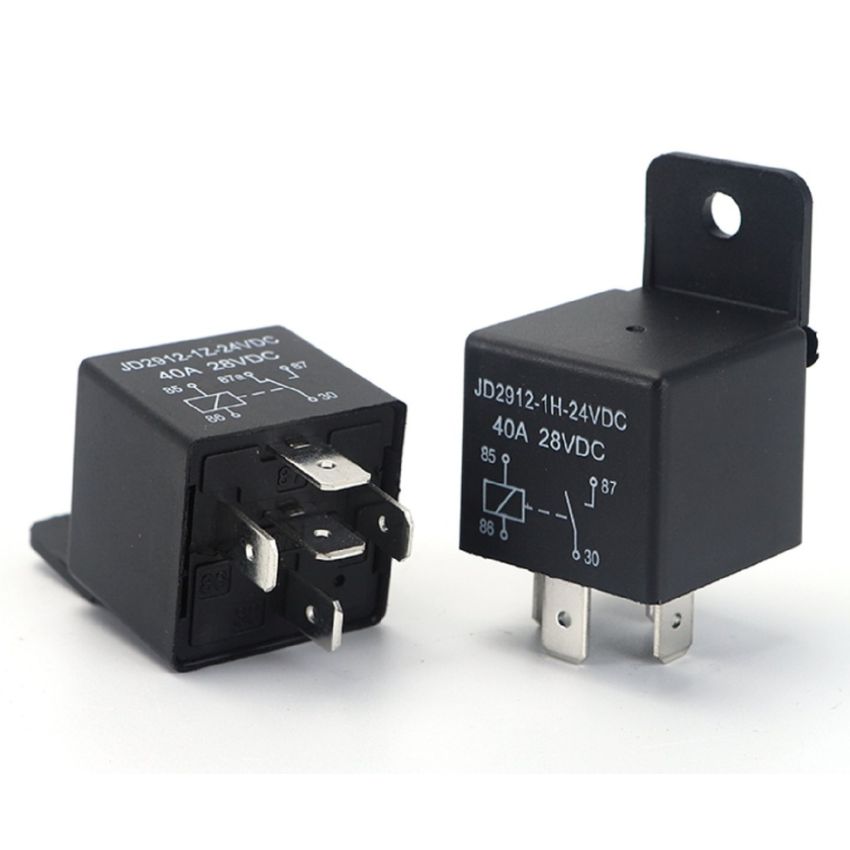

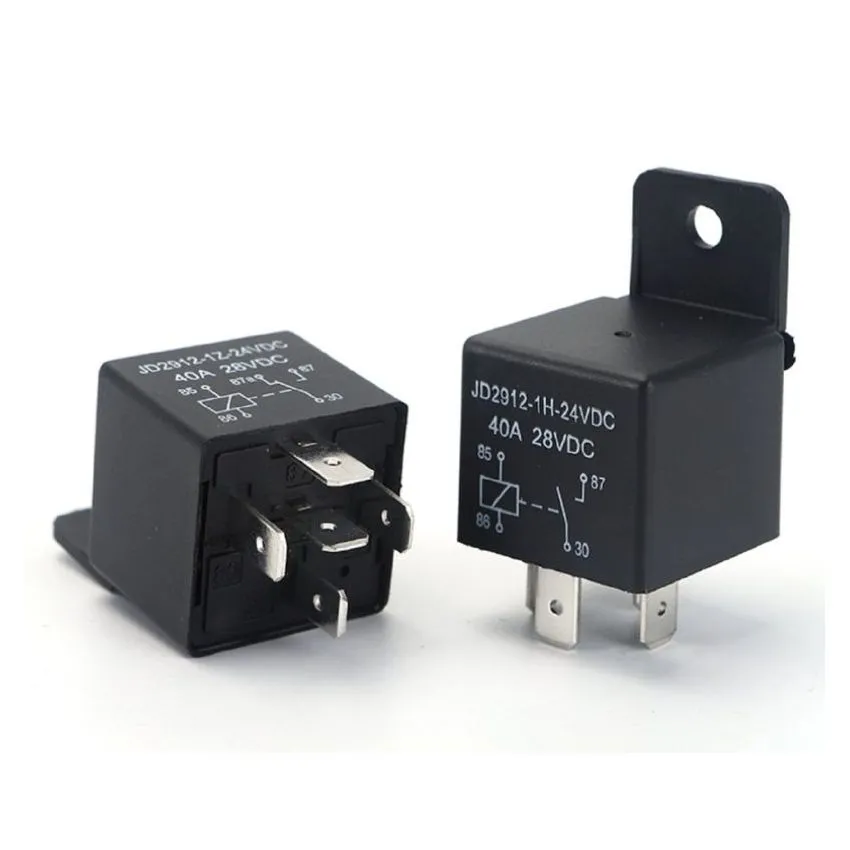

JD2912-1Z-12VDC, Automotive Power Relay, Plug-In Type

The JD2912-1Z 12VDC is a robust automotive relay designed to switch high-current DC loads, such as headlights, horns, cooling fans, fuel pumps, and other automotive circuits. With a 5-pin SPDT layout and standard automotive terminal spacing, it ensures easy integration with most 12V relay systems. Its heavy-duty construction and secure mounting tab make it ideal for both aftermarket and OEM vehicle wiring setups.

Key Features:

• High Current Capacity: Rated for 40A at 28VDC, ideal for automotive applications
• SPDT Contact Configuration: Offers Normally Open (NO) and Normally Closed (NC) outputs
• Integrated Mounting Tab: Allows quick installation in vehicles or control panels
• Standard 5-Pin Layout: Compatible with relay sockets and harnesses
• Durable Plastic Housing: Sealed for moisture and dust resistance in automotive environments
• Mechanical Life Over 10 Million Operations: Built for long-term reliable performance

Additional Specifications:

• Type: Electromechanical Relay
• Number of Channels: 1
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: 28Vdc At 40A
• Switching Voltage (VAC)/Current: N/A
