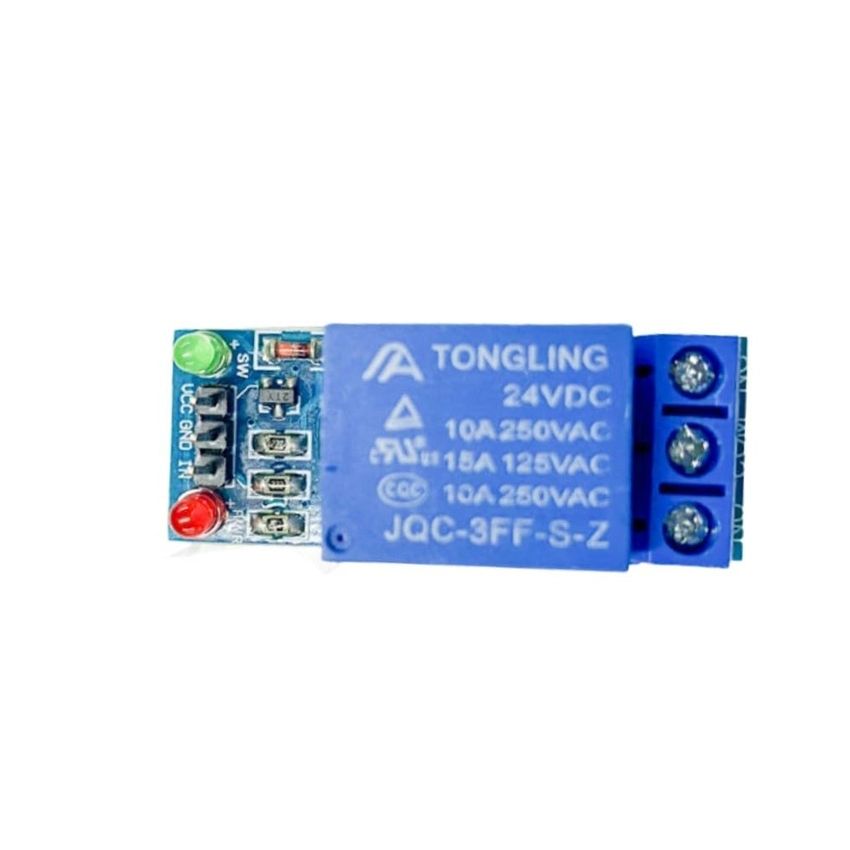

RELAY-1CH-24VDC, 1-Channel Relay Module, PCB Mount

The RELAY-1CH-24VDC is a single-channel relay module based on the JQC-3FF-S-Z 24VDC relay. It is designed to switch AC or DC high-current loads using 24V logic signals, such as those found in industrial controllers or building automation systems. The module features opto-isolated input protection, clearly labeled pin headers, screw terminals for load connections, and onboard indicator LEDs for intuitive operation.

Key Features:

• 24V Logic Compatible: Easily connects with 24V control systems and PLCs
• High Current Switching: Supports up to 10A at 250VAC or 15A at 125VAC
• SPDT Relay Design: Offers Normally Open (NO), Normally Closed (NC), and Common (COM) terminals
• LED Indicators: Power and status LEDs for easy monitoring
• Opto-Isolated Input: Protects low-voltage control circuits from high-voltage transients
• Screw Terminals: Secure and tool-free connection of load wires

Additional Specifications:

• Type: Electromechanical Relay Module
• Number of Channels: 1
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A,125Vac At 15A
