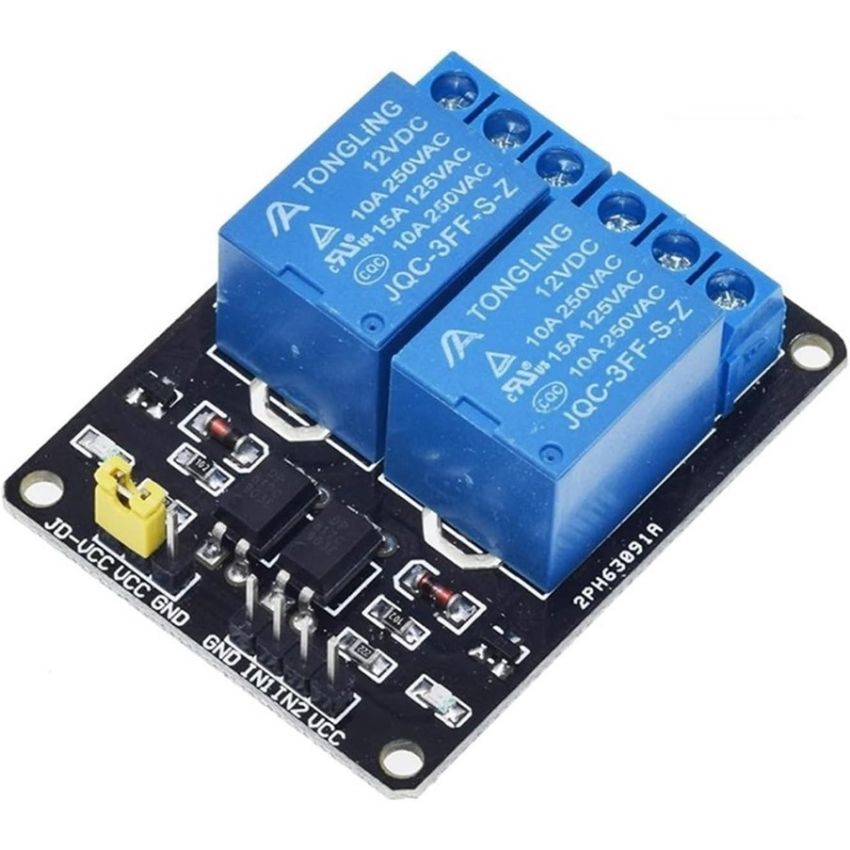

RELAY-2CH-12VDC, 2-Channel Relay Module, PCB Mount

The RELAY-2CH-12VDC module is a compact dual-relay board equipped with two 12V JQC-3FF-S-Z electromechanical relays. It is designed for easy integration with 12V logic control systems and allows switching of high-power AC or DC loads. The board features screw terminals for secure connections and onboard indicators for each channel, making it an ideal solution for home automation, industrial applications, and DIY electronics.

Key Features:

• Dual Channel Control: Independently control 2 AC/DC loads with a single module
• 12V Compatible: Designed for microcontrollers operating at 12V logic, such as Arduino, STM32, etc.
• High Switching Capacity: Each relay supports up to 10A at 250VAC or 15A at 125VAC
• SPDT Relay Outputs: Both relays offer Normally Open (NO), Normally Closed (NC), and COM terminals
• LED Indicators: Individual LEDs indicate channel status for real-time feedback
• Opto-Isolated Design: Ensures safe operation and protection from high-voltage surges

Additional Specifications:

• Type: Electromechanical Relay Module
• Number of Channels: 2
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A,125Vac At 15A
