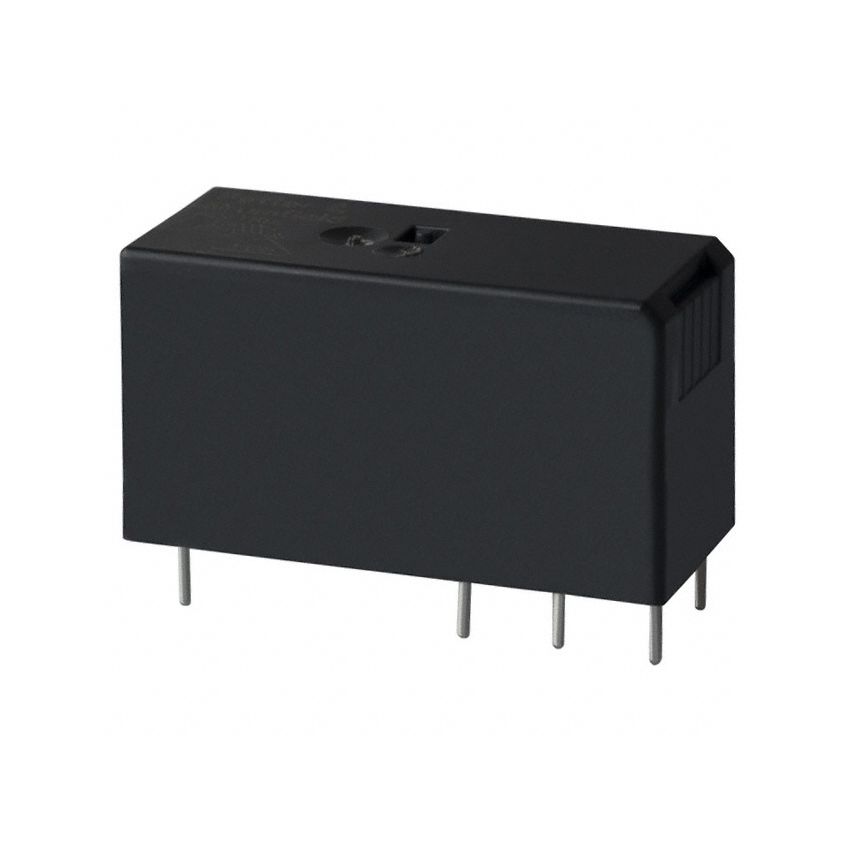

RT424524, General-Purpose Relay, Through-Hole Mount

The TE Connectivity Schrack RT424524 is a high-capacity, general-purpose relay featuring a 24VAC coil and DPDT contact configuration. Its compact design and robust performance make it ideal for a wide range of applications, including industrial automation, HVAC systems, and power control circuits. The relay's high switching capacity and high dielectric strength ensure reliable operation in demanding environments.​

Key Features:

• DPDT Contact Configuration: Double-pole, double-throw (2 Form C) for versatile switching applications​
• High Switching Capacity: Handles up to 8A at 250VAC, suitable for various applications​
• Wide Switching Voltage Range: Capable of switching up to 400VAC​
• Compact Design: Space-saving form factor ideal for PCB integration​
• High Dielectric Strength: Ensures reliable operation in electrically noisy environments​
• UL Class F Coil Insulation: Provides enhanced thermal endurance up to 155°C​

Additional Specifications:

• Type: Electromechanical Relay​
• Number of Channels: 2
• Coil Voltage: 24Vac
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 250Vac At 8A
