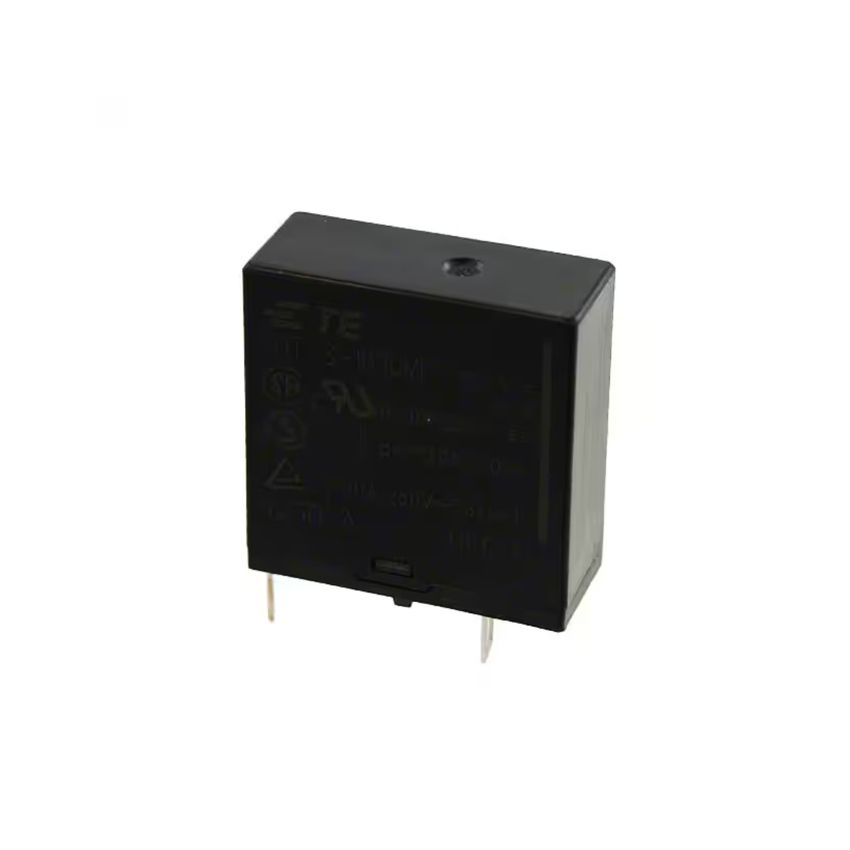

SDT-S-112LMR, General-Purpose Relay, Through-Hole Mount

The TE Connectivity SDT-S-112LMR is a high-capacity, general-purpose relay featuring a 12VDC coil and SPST-NO contact configuration. Its compact design and robust performance make it ideal for a wide range of applications, including industrial automation, HVAC systems, and power control circuits. The relay's high switching capacity and high dielectric strength ensure reliable operation in demanding environments.​

Key Features:

• SPST-NO Contact Configuration: Single-pole, single-throw normally open contacts for straightforward switching applications​
• High Switching Capacity: Handles up to 10A at 250VAC or 30VDC, suitable for various applications​
• Sensitive Coil: Low power consumption with a coil power rating of 250mW​
• Compact Design: Space-saving form factor ideal for PCB integration​
• High Dielectric Strength: Ensures reliable operation in electrically noisy environments​
• UL Class E Coil Insulation: Provides enhanced thermal endurance up to 115°C​

Additional Specifications:

• Type: Electromechanical Relay​
• Number of Channels: 1
• Coil Voltage: 12Vdc
• Switching Voltage (VDC)/Current: 30Vdc At 10A
• Switching Voltage (VAC)/Current: 250Vac At 10A
