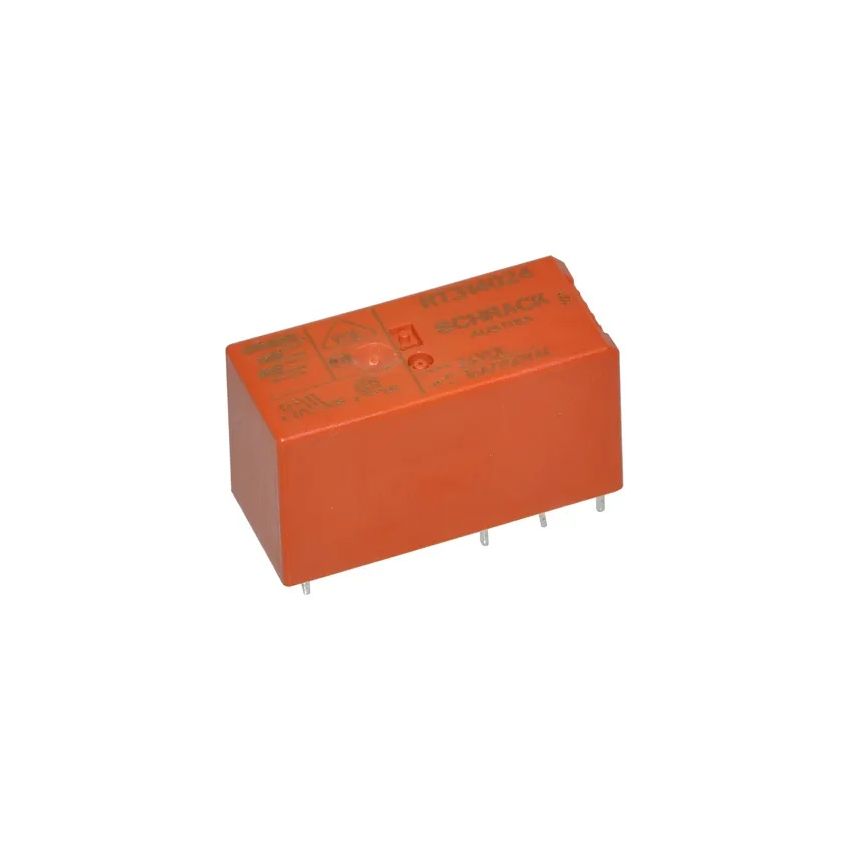

RT314024, General-Purpose Relay, Through-Hole Mount

The TE Connectivity Schrack RT314024 is a high-capacity, general-purpose relay featuring a 24VDC coil and SPDT contact configuration. Its compact design and robust performance make it ideal for a wide range of applications, including industrial automation, HVAC systems, and power control circuits. The relay's high switching capacity and high dielectric strength ensure reliable operation in demanding environments.​

Key Features:

• High Switching Capacity: Handles up to 16A at 250VAC, suitable for various applications​
• SPDT Contact Configuration: Single-pole, double-throw (1 Form C) for versatile control​
• Compact Design: Space-saving form factor ideal for PCB integration​
• High Dielectric Strength: Ensures reliable operation in electrically noisy environments​
• Wide Operating Temperature Range: Operates reliably from -40°C to +85°C​
• UL Class F Coil Insulation: Provides enhanced thermal endurance up to 155°C​

Additional Specifications:

• Type: Electromechanical Relay
• Number of Channels: 1
• Coil Voltage: 24Vdc
• Switching Voltage (VDC)/Current: N/A
• Switching Voltage (VAC)/Current: 250Vac At 16A
