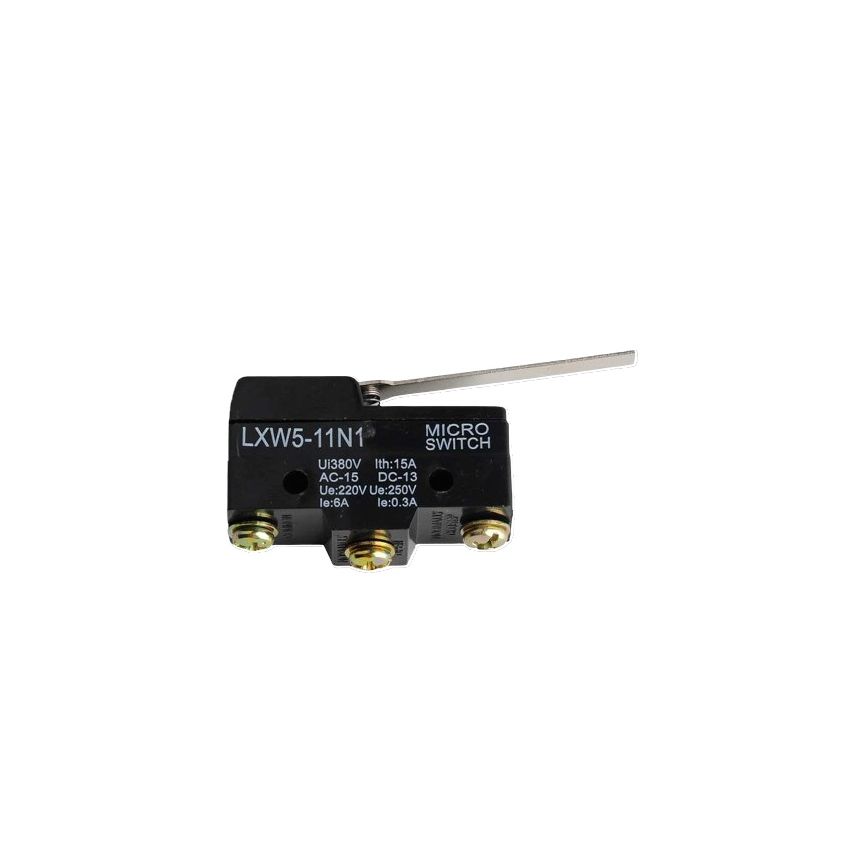

LXW5-11N1, Snap-Action Limit Switch,Panel Mount Package

The LXW5-11N1 Limit Switch is a mechanical micro switch designed for precise detection and control in machinery and automation systems. It uses a hinged lever actuator and SPDT switching mechanism, providing versatile options for use in both normally open (NO) and normally closed (NC) circuit applications. Built with robust screw terminals and rated for up to 15A, this switch ensures reliable operation in AC-15 and DC-13 rated environments.

Key Features:

• SPDT Contact Configuration – Offers single-pole double-throw contacts for dual circuit control.
• Hinge Lever Actuator – Comes with a straight hinge lever for accurate and responsive mechanical switching.
• High Electrical Capacity – Supports up to 15A at 250VAC and 6A at 220V under AC-15 category, suitable for industrial-grade applications.
• Dual AC/DC Support – Rated for both AC and DC currents with 0.3A at 250VDC under DC-13 category.
• Secure Screw Terminals – Equipped with large screw terminals for strong and secure wire connection.
• Durable & Compact Design – Built for heavy-duty environments while maintaining a space-efficient form factor.

Additional Specifications:

• Circuit: SPDT
• Switch Type: Snap Action Limit Switch
• Actuator Type: Hinge Lever
• Current Rating (Amps): AC:15A,DC:0.3A
• Voltage Rating: 250Vac,250Vdc
