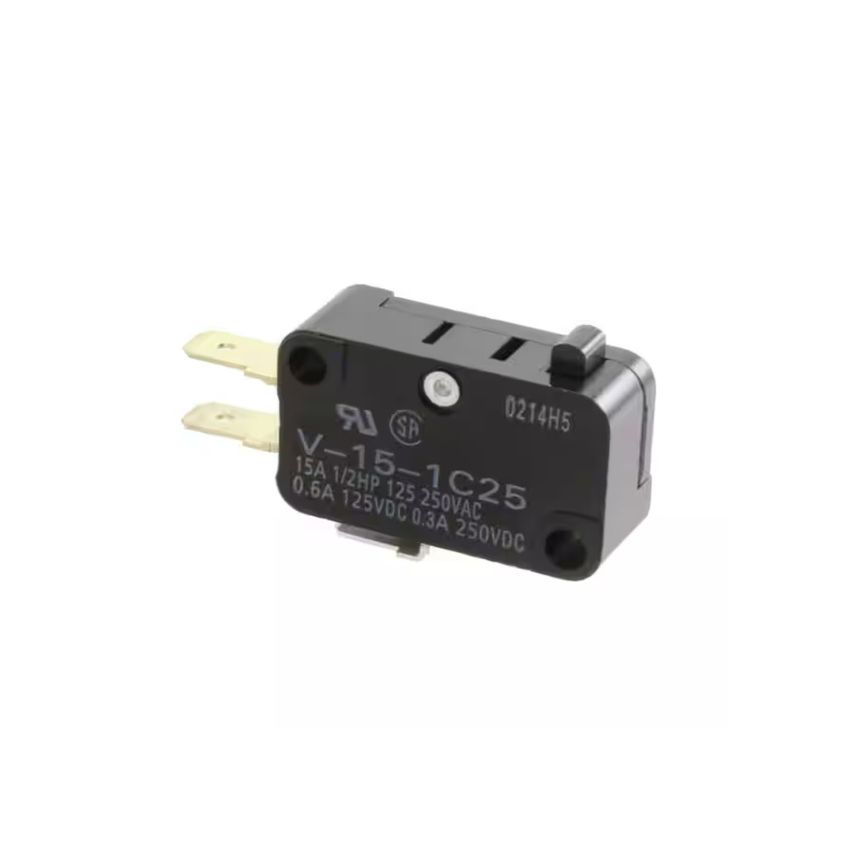

V-15-1C25, Snap-Action Limit Switch, Panel Moun

The V-15-1C25 is a miniature snap-action limit switch designed for precise and reliable switching in industrial and commercial applications. Its SPDT configuration allows for versatile circuit control, while the pin plunger actuator ensures accurate mechanical response. With a high current rating and quick-connect terminals, this switch is both powerful and easy to integrate into various systems.​

Key Features:

• SPDT Contact Configuration – Provides single-pole double-throw functionality for versatile circuit control.​
• Pin Plunger Actuator – Features a round pin plunger for precise mechanical operation.​
• High Current Capacity – Rated for up to 15A at 250VAC, suitable for various industrial applications.​
• Quick Connect Terminals – Equipped with 0.187-inch (4.7mm) quick-connect terminals for easy installation.​
• Compact Miniature Design – Ideal for applications with limited space, offering reliable performance in a small form factor.​
• Long Mechanical Life – Designed for durability with a mechanical life of 50 million cycles.​

Additional Specifications:

• Circuit: SPDT
• Switch Type: Snap Action Limit Switch
• Actuator Type: Pin Plunger
• Current Rating (Amps): 15A At 250Vac,0.6A At 125Vdc
• Voltage Rating: 250Vac,125Vdc
