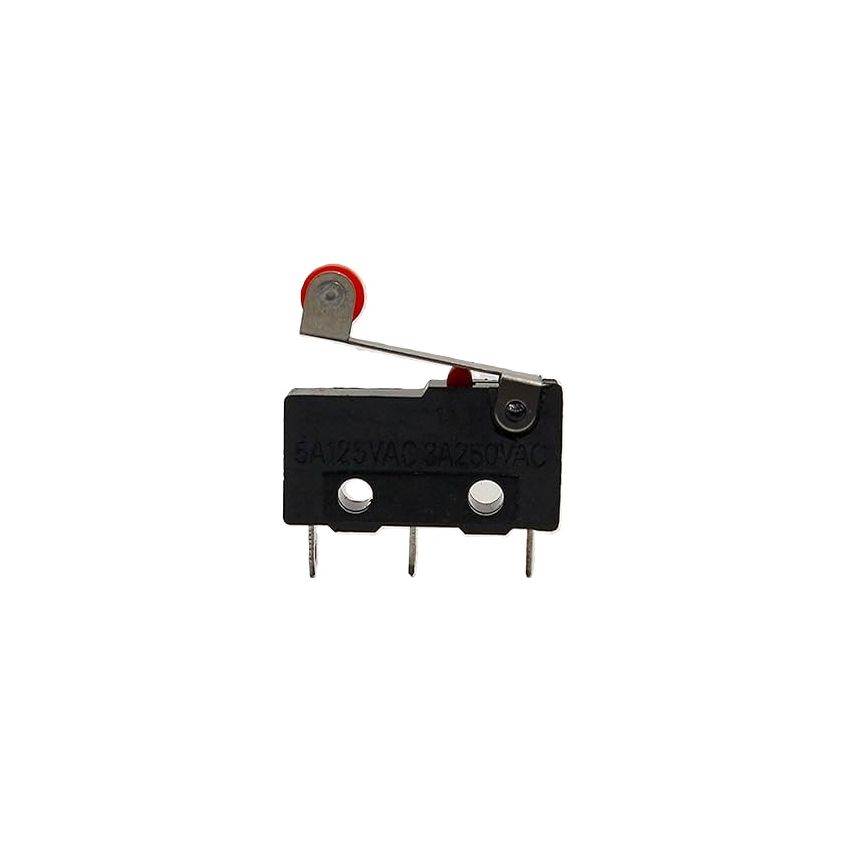

SWITCH-LIMIT-SMALL, Miniature Limit Switch, Roller Lever

The SWITCH-LIMIT-SMALL is a compact, snap-action limit switch designed for space-sensitive and precision-based applications. It incorporates a roller lever actuator to ensure accurate response to mechanical contact. With a current rating of 5A at 125VAC and 3A at 250VAC, this switch supports a range of voltage applications. It features three terminal pins (Common, NO, NC) and is suitable for both AC and DC logic-level triggering. Ideal for safety interlocks, limit detection, and device feedback systems.

Key Features:

• Compact design ideal for confined spaces and light mechanical interfaces.
• Features a roller lever actuator for smooth mechanical triggering.
• Rated 5A at 125VAC and 3A at 250VAC for versatile voltage handling.
• Quick-connect terminals for easy integration in electronic circuits.
• Durable plastic housing for mechanical protection.
• Widely used in automation, 3D printers, CNC machines, and appliance controls.

Additional Specifications:

• Circuit: SPDT
• Switch Type: Miniature Limit Switch
• Actuator Type: Roller Lever
• Current Rating (Amps): 5A At 125Vac, 3A At 250Vac
• Voltage Rating: 125Vac,250Vac
