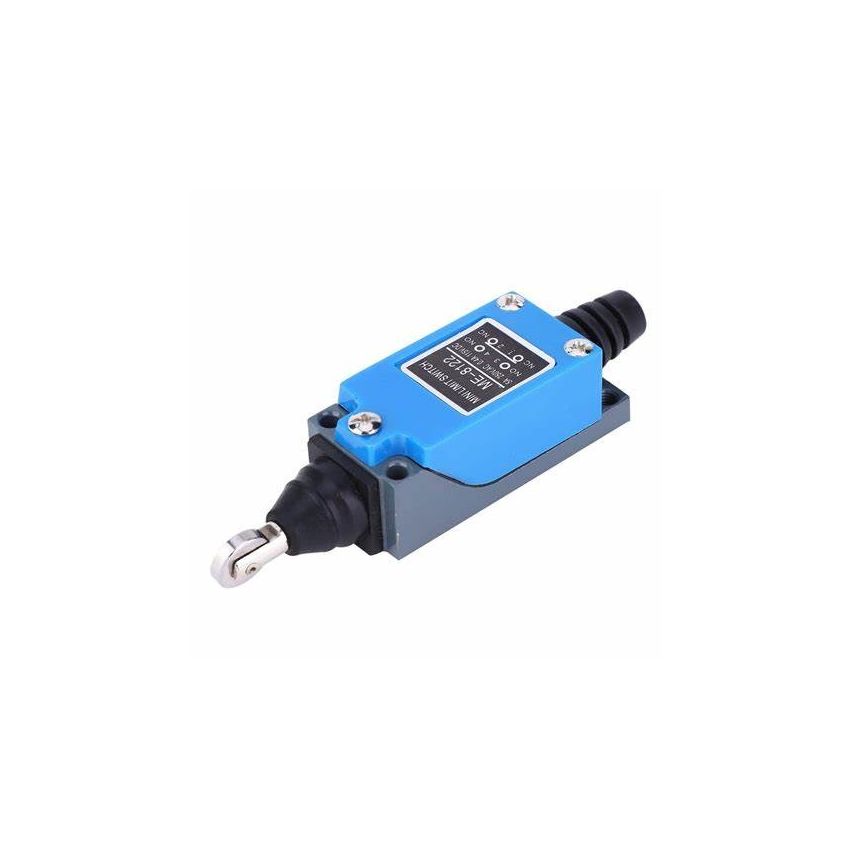

ME-8122, Adjustable Rotary Limit Switch, Panel Mount

The ME-8122 Adjustable Rotary Limit Switch is designed for precise control and monitoring of moving parts in various machines and facilities. Its adjustable rotary roller lever actuator allows for flexible installation and accurate position detection. With a high current capacity and durable construction, this switch is ideal for applications in CNC machinery, automation systems, and industrial equipment.​

Key Features:

• SPDT Contact Configuration – Provides single-pole double-throw functionality for versatile circuit control.​
• Adjustable Rotary Roller Lever Actuator – Features a cross roller plunger with an adjustable lever arm for precise mechanical operation.​
• High Current Capacity – Rated for up to 5A at 250VAC, suitable for various industrial applications.​
• Durable Construction – Built with a combination of plastic and rubber materials for robust performance.​
• Compact Design – Dimensions of 110 x 28 x 25mm make it suitable for installations with space constraints.​
• Wide Operating Voltage Range – Supports both AC and DC operations, accommodating diverse electrical systems.​

Additional Specifications:

• Circuit: SPDT
• Switch Type: Snap Action Limit Switch​
• Actuator Type: Adjustable Rotary Roller Lever
• Current Rating (Amps): 5A At 250Vac,0.4A At 115Vdc
• Voltage Rating: 250Vac,115Vdc
