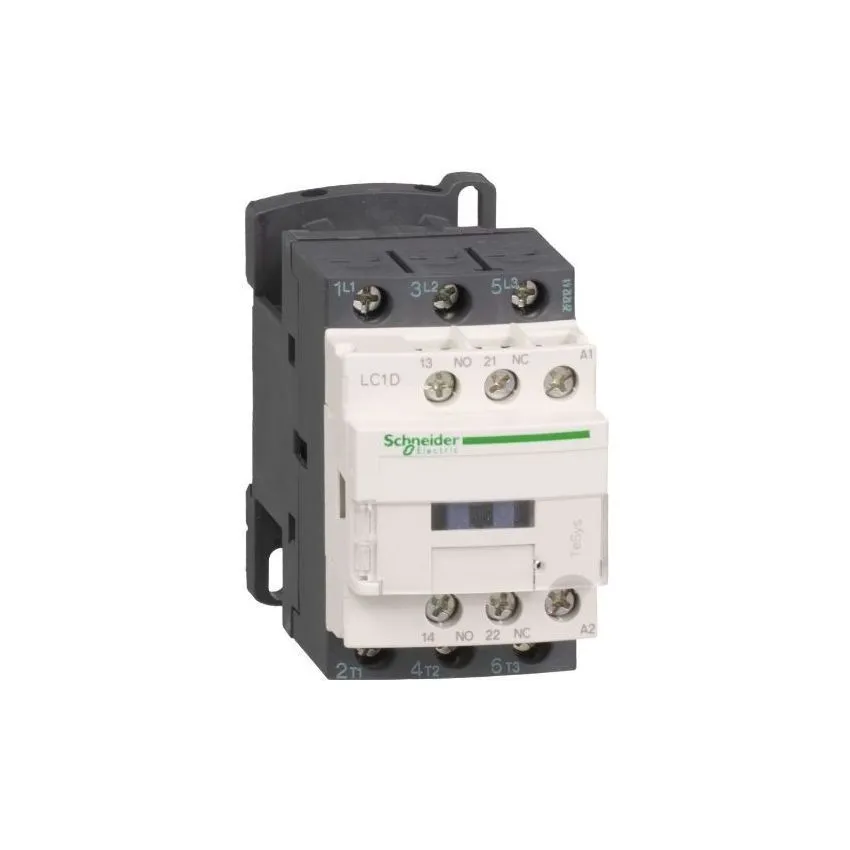

LC1D18M7, Schneider Electric Contactor, 230V

The Schneider Electric LC1D18M7 Contactor is a robust and efficient motor control device from the TeSys D series. It is designed to control AC motors up to 10 HP (480V) and other electrical loads in industrial automation, HVAC systems, and commercial applications. With a 3-pole, normally open (3NO) contact configuration, it ensures safe and efficient power switching. The compact design, combined with DIN rail and panel mounting compatibility, makes it an excellent choice for control panels and automation systems.

Key Features:

• High-Performance Contactor – Designed for motor control and resistive load applications.
• 220-230V AC Coil Voltage – Ensures reliable operation in industrial and commercial setups.
• 3-Pole Contact Form – Features 3 Normally Open (3NO) power contacts for switching operations.
• 18A Contact Rating – Capable of handling up to 18A at ≤ 440V AC (AC-3 applications).
• Long Electrical Life – Provides up to 1.65 million switching cycles at rated load.
• DIN Rail or Panel Mounting – Supports flexible installation options.

Additional Specifications:

• Coil Voltage: 220-230Vac At 50,60 Hz
• Contact Form: 3P
• Contact Rating (Current): 18A At ≤440V AC
