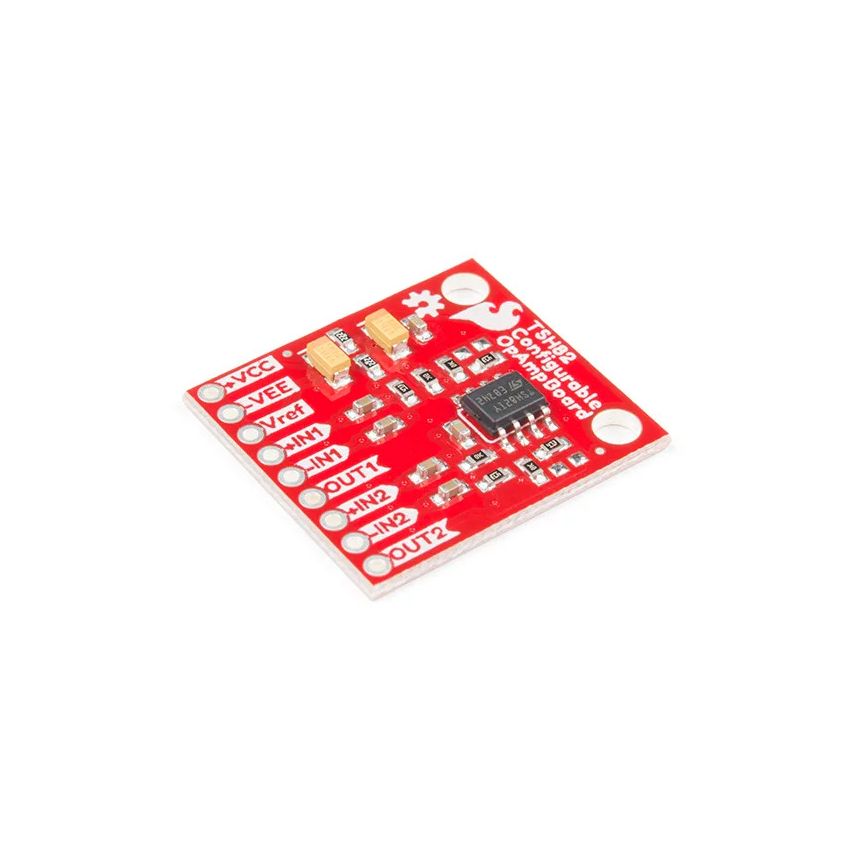

SparkFun Configurable OpAmp Board - TSH82

SKU
DEDB0171
Part Number
BOB-14874
Brand:
Delivery in 2-5 Weeks.
Pre-Order
Out Of Stock

Notify me when this product is available:

Guarantee safe & secure checkout

Description :

SparkFun TSH82 Configurable OpAmp Board designed for performance and flexibility
Two gain stages, each independently accessible on header pins
Default configuration: inverting amplifier with gain of -4.7 and bandwidth of almost 10MHz
Input signals AC coupled, input impedance of 10K, and low frequency cutoff of 15.9Hz
Outputs DC coupled, add capacitor to output if single-ended supply and need to strip out DC component
Can operate with single-ended DC power supply of 4.5V to 12V or bipolar supply from /-2.25V to /-6V
10 solder jumpers on the back for changing board performance, but not necessary to change for use in default state
