Specifications:

Logic Function: NAND
Logic Family: 74LS
Number of Gates: 3 Gate
Number of Input Lines: 3 Input
Number of Output Lines: 1 Output
High Level Output Current: - 100 uA
Low Level Output Current: 8 mA
Propagation Delay Time: 32 ns
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: 70 C
Mounting Style: Through Hole

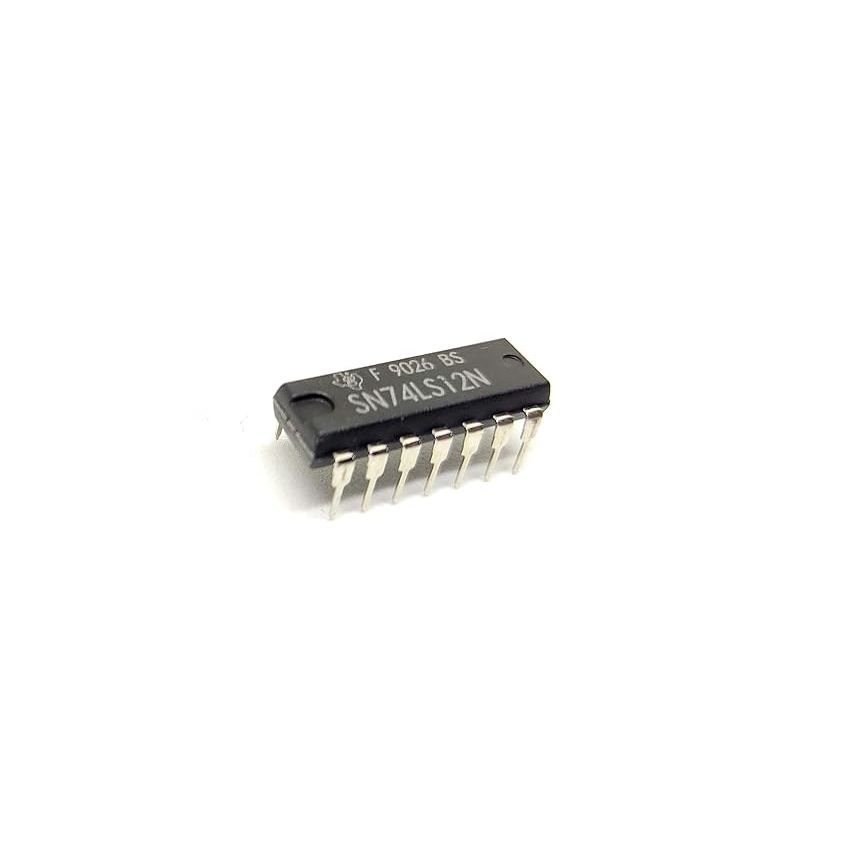

Package/Case: PDIP-14
Function: Gate
Height: 4.57 mm
Length: 19.3 mm
Logic Type: 3-INPUT NAND
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to 70 C
Output Type: Open Collector
Width: 6.35 mm
Unit Weight: 1 g
