SkyRC IMAX B6 V2 Professional Balance Charger / Discharger

The SkyRC B6 V2 is a versatile high-performance charger, discharger, and DC/DC converter with advanced battery management for all major battery types, including LiPo, LiFe, Li-Ion, LiHV, NiMH, NiCd, and Pb. Delivering 60W total power and up to 6A charge current, it supports efficient charging for DJI Mavic and Inspire batteries at up to 4A.

Powered by a high-speed ARM Cortex-M3 32-bit processor, the B6 V2 ensures faster data processing and precise battery management. It features a wide input voltage range (2.5–5.5V) with strong anti-interference capabilities and provides 20% more charge power than the original B6 for faster, more efficient charging.

The B6 V2 also offers DC power output (5–26V, 1–6A), allowing you to power devices like tire warmers or pit lights in the field. Power supply not included.

Specifications

• Case Material: Aluminum
• Display: LCD
• DC Input: 11–18V
• Charge Power: 60W
• Discharge Power: 5W
• DC Output Power: 60W
• Battery Types Supported:
  • LiPo/LiHV/LiFe/Li-Ion: 1–6 cells
  • NiMH/NiCd: 1–15 cells
  • Pb: 2–20V
  • DJI Mavic: 3 cells (LiHV)
  • DJI Inspire: 4 cells (LiHV)
• Battery Capacity Range: 100–50,000mAh
• Charge Current: 0.1–6A (all standard batteries), max 4A (DJI Mavic/Inspire)
• Discharge Current: 0.1–2A
• Balance Cells: 2–6 cells
• Balance Current: 300mA per cell
• Safety Timer: 1–120 minutes off
• Memory: 10 charge/discharge profiles

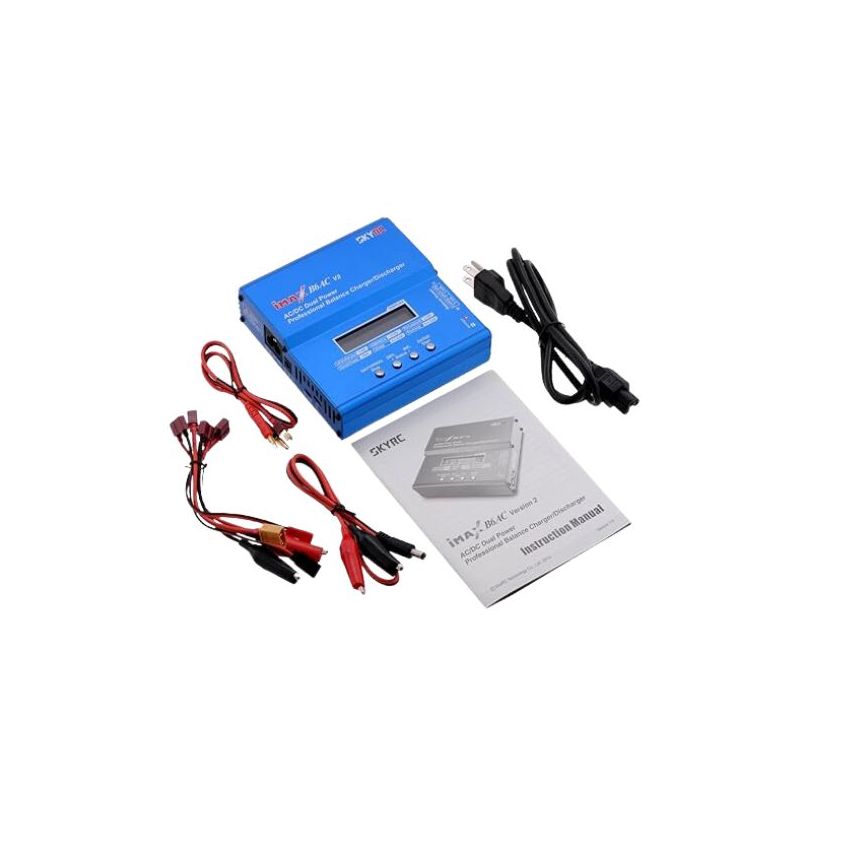

Includes:

• 1x SkyRC iMAX B6 V2 Charger/Discharger
• 1x DC Input Cable
• 1x Dean Charging Cable
• 1x Bare Charging Cable
• 1x Instruction Manual
