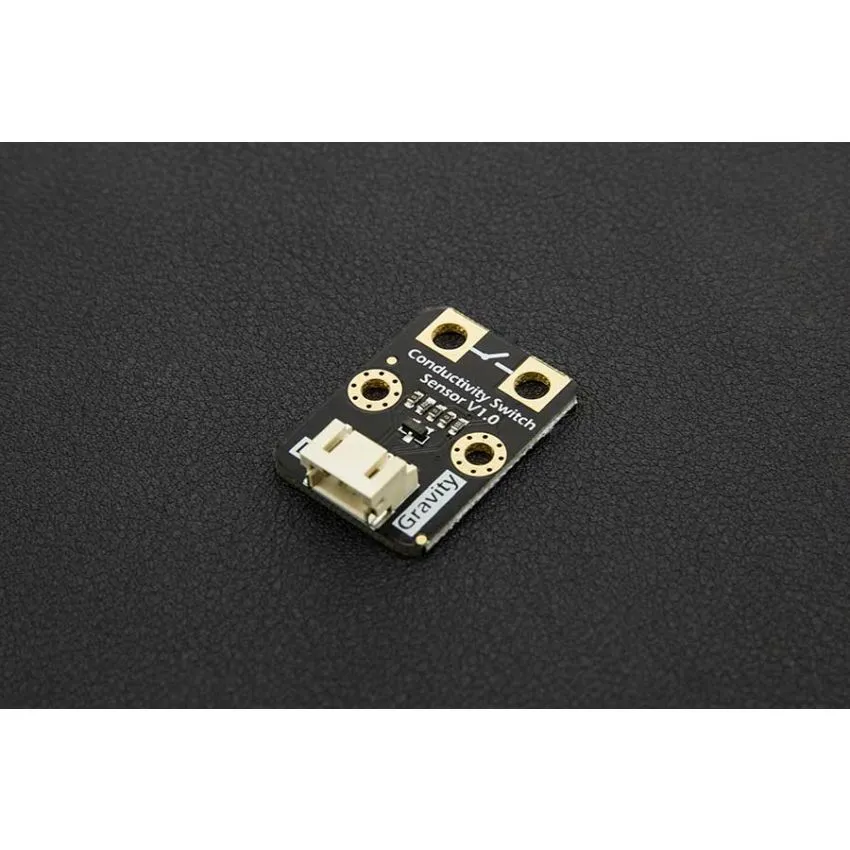

The Gravity Conductivity Sensor Switch module can be used to detect if an object has electrical conductivity. Its maximum detection value is 10MΩ. It can detect not only coins, wires, metal and other good conductors, but also the human body, fruit, plants and other conductors.

By touching the positive and negative terminals of the conductive switch, you can change the output state of the module. Use this to make interactive applications such as fruit pianos, musical wind chimes or interactive video game controllers so Super Mario using a bunch of bananas.

SPECIFICATION

Operating Voltage: 3.3 ~ 5V
Output Signal: Digital
Interface Mode: PH2.0-3P
Maximum Detecting Resistance: 10MΩ
Dimension: 30 x 22mm
Alligator clip Length: 45cm
Weight: 22g
