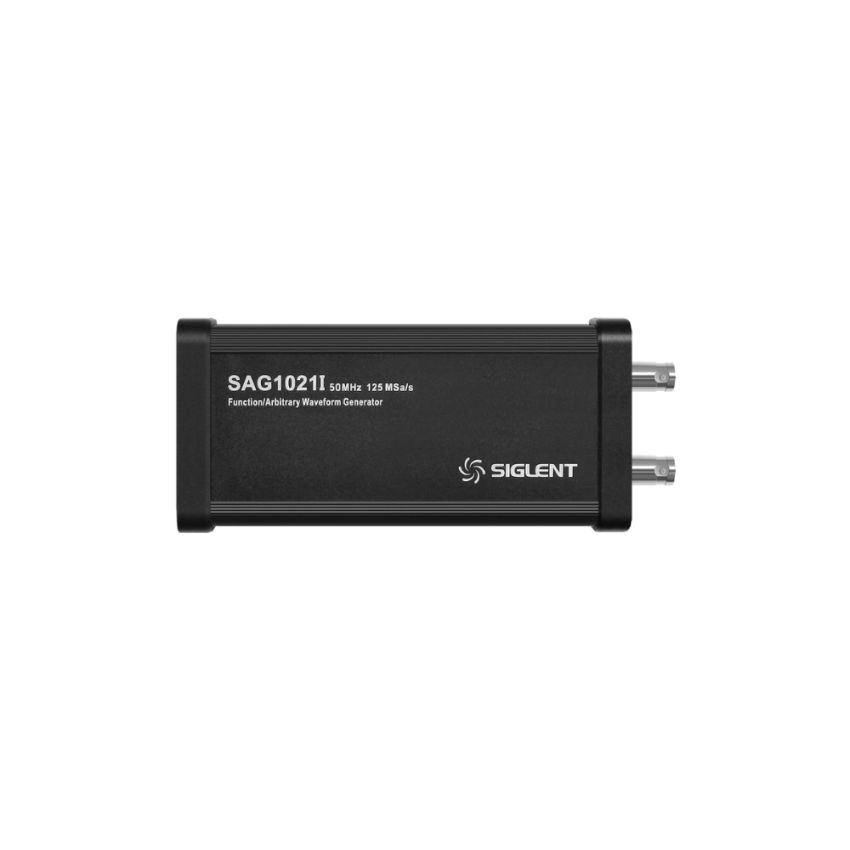

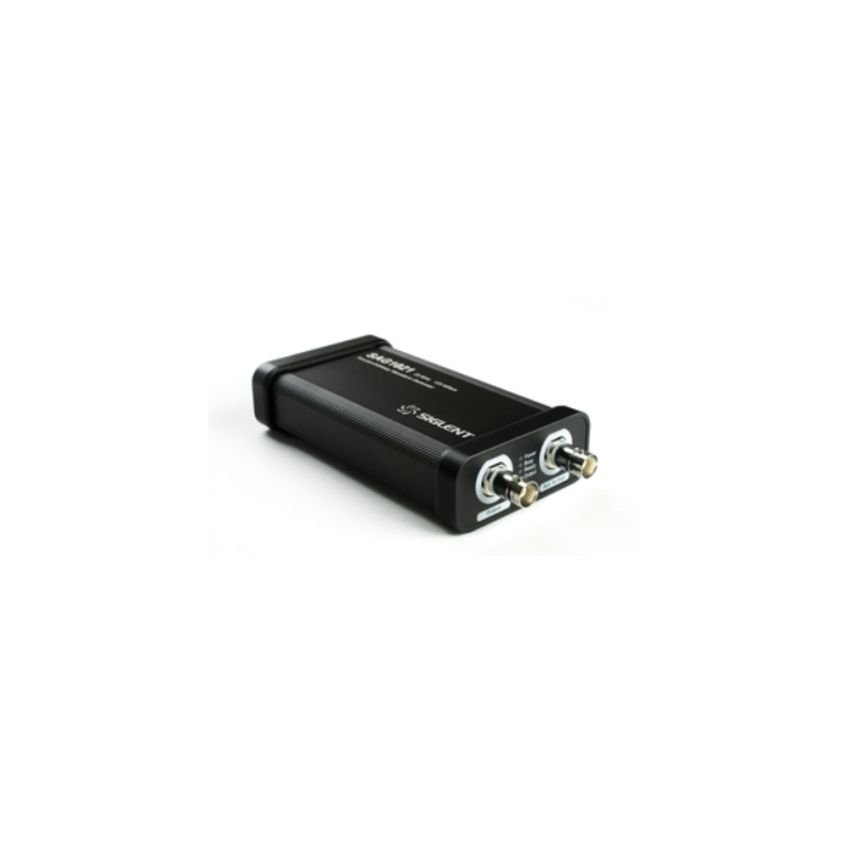

SAG1021I, External Function Arbitrary Waveform Generator, 1 Channel, 25 MHz Max Output Frequency

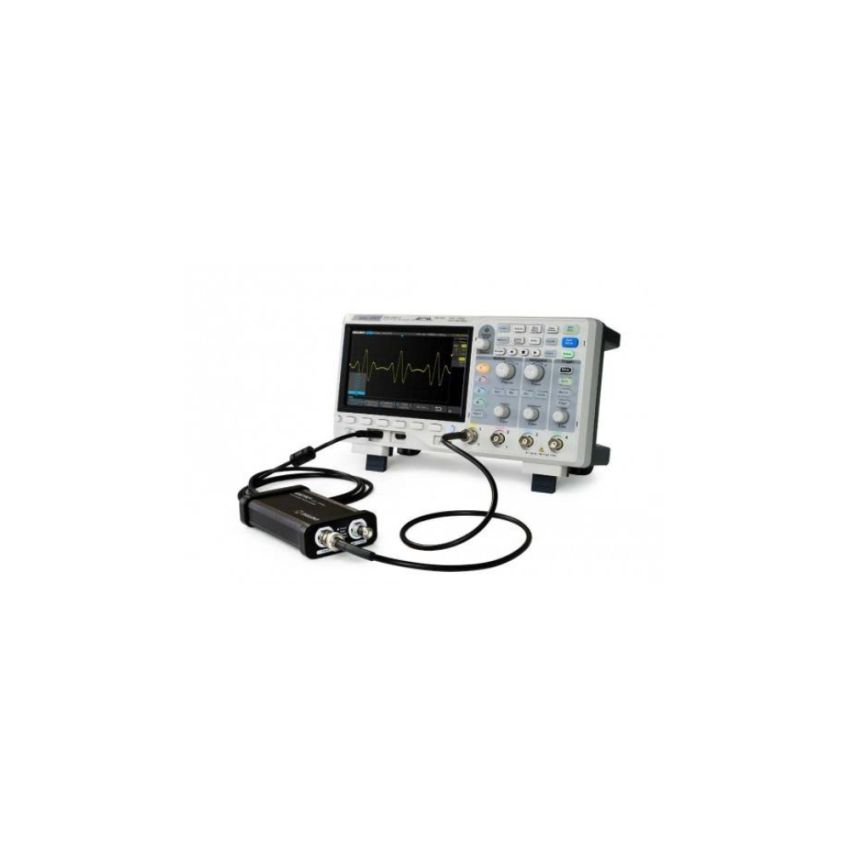

The Siglent SAG1021I is a compact, isolated, external arbitrary waveform generator that connects to Siglent oscilloscopes via USB. It delivers a maximum output frequency of 25 MHz with a single channel and supports standard signals like sine, square, ramp, pulse, noise, and DC, in addition to 45 preloaded arbitrary waveforms. With 14-bit vertical resolution and a sampling rate of 125 MSa/s, it offers clean and precise waveform generation. The module features galvanic isolation up to ±42 Vpk for safe testing in power-sensitive applications. It is ideal for enhancing the signal generation capabilities of compatible oscilloscopes without the need for internal modules.

Key Features:

• 25 MHz maximum output frequency with 125 MSa/s sample rate
• 14-bit vertical resolution for high precision waveform generation
• Supports standard and 45 built-in arbitrary waveforms
• Galvanic isolated output with ±42 Vpk insulation for safety
• USB connectivity for easy integration with compatible Siglent oscilloscopes
• Compact and portable design, powered directly via USB
