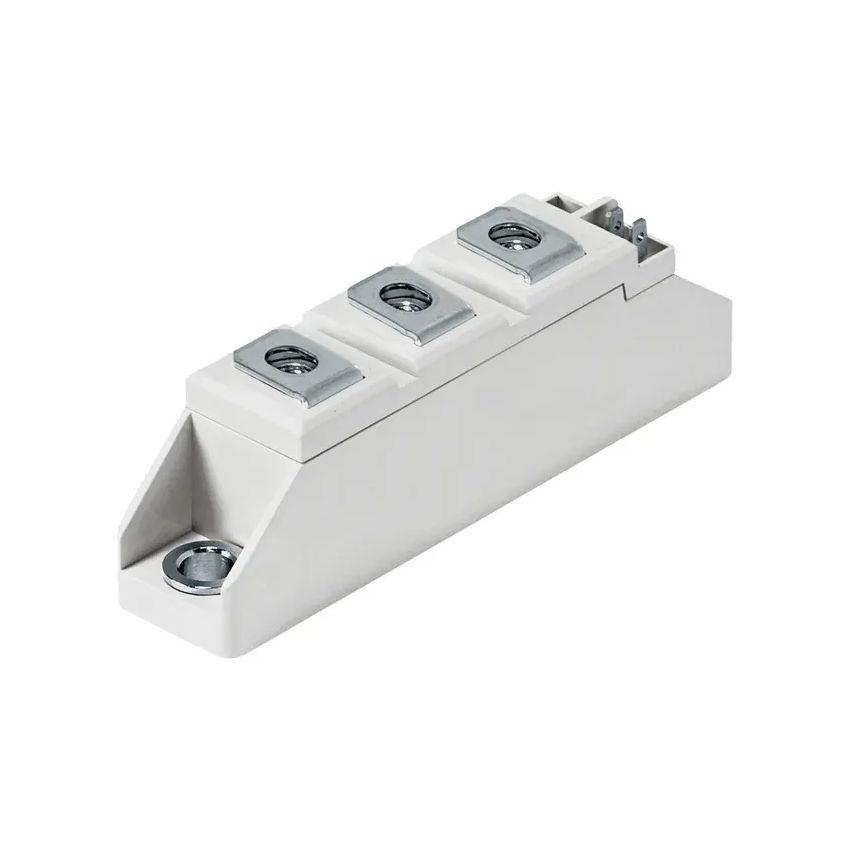

SKKH 92/16E, 1600V 95A Thyristor/Diode Module, SEMIPACK 1

The SKKH 92/16E is a thyristor/diode module designed for high-efficiency power control applications. Its robust construction allows it to handle high currents and voltages, making it ideal for use in DC motor drives, temperature control systems, and professional lighting equipment. The module's compact SEMIPACK 1 package ensures easy integration into various electronic circuits.​

Key Features:

• High Voltage Capability: Withstands repetitive peak reverse voltages up to 1600V, suitable for high-voltage applications.​
• High Current Handling: Supports average forward currents up to 95A, ideal for demanding power applications.​
• Robust Surge Current Tolerance: Capable of withstanding non-repetitive surge currents up to 2000A, providing robustness against transient conditions.​
• Efficient Thermal Management: Features a thermal resistance junction-to-case of 0.28°C/W per thyristor, ensuring effective heat dissipation.​
• Compact SEMIPACK 1 Package: Facilitates easy mounting and efficient heat dissipation in space-constrained designs.​
• Versatile Applications: Suitable for DC motor control, temperature control, and professional light dimming applications.​

Additional Specifications:

• Mounting Style: Panel Mount
• Gate Trigger Voltage (Vgt): 2.5V
• Gate Trigger Current (Igt): 150Ma
• Non repetitive surge peak on-state current (ITSM): 2000A
• Operating temprature Range: -40+125°C
• Rated Repetitive Off-State Voltage (VDRM): 1600V
