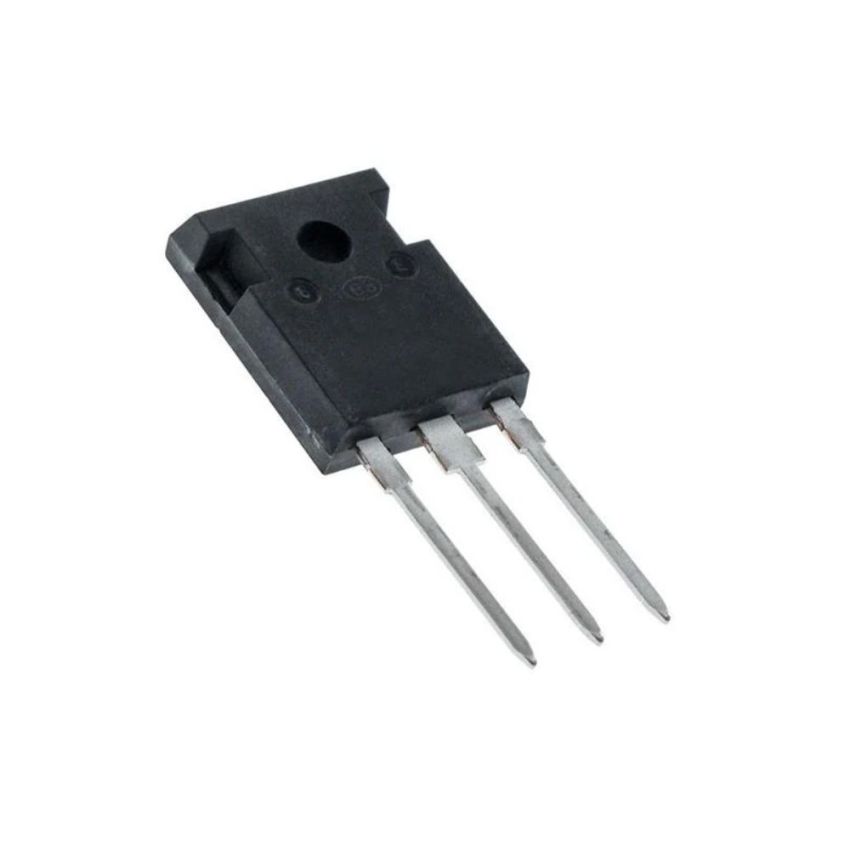

MBR30200PT, Schottky Barrier Rectifier, TO-247AD Package

The MBR30200PT is a Schottky barrier rectifier optimized for low voltage, high-frequency applications such as switching power supplies, freewheeling diodes, and polarity protection circuits. Its low forward voltage drop and fast switching characteristics make it a reliable choice for high-efficiency rectification applications. The TO-247AD package allows for effective heat dissipation and easy mounting, ensuring stable operation under high power loads.

• High Current Capability: Delivers a forward average current of 30A, suitable for high-power applications.
• Low Forward Voltage Drop: Ensures efficient operation with a typical forward voltage of 0.84V at 15A, reducing power loss.
• High Surge Current Capability: Withstands surge currents up to 200A, providing robustness against transient conditions.
• Low Reverse Leakage Current: Features a maximum reverse leakage current of 20µA at 25°C, ensuring minimal energy loss.
• High Temperature Operation: Capable of operating at junction temperatures ranging from -55°C to +150°C, suitable for various environments.
• TO-247AD Package: Offers efficient heat dissipation and ease of mounting in various power supply designs.
