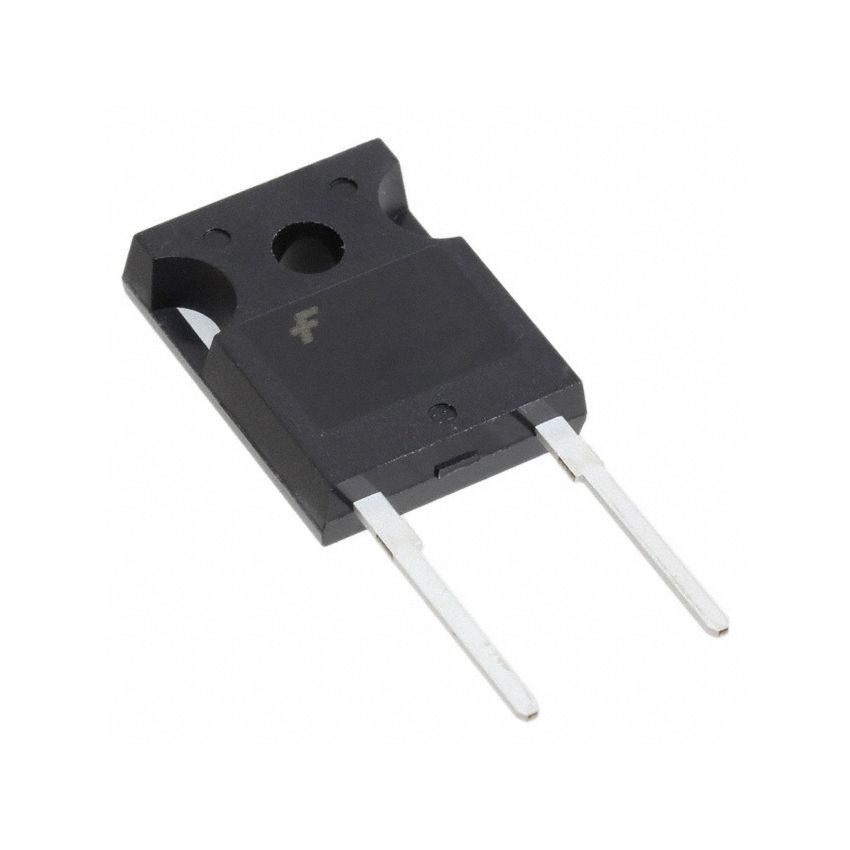

RURG5060, 50A 600V Ultrafast Diode, TO-247-2

The RURG5060 is a high-speed ultrafast diode featuring soft recovery characteristics, designed for use in switching power supplies and power-switching circuits. This 600V diode supports an average forward current of 50A and surge capabilities of up to 500A. Thanks to its soft recovery and fast switching properties, it minimizes noise and EMI in high-performance circuits. Packaged in a TO-247-2 case, it's ideal for clamping, freewheeling, and rectification in demanding environments.

Key Features:

• Ultrafast Recovery: Reverse recovery time as low as 65ns reduces power losses in switching applications.
• High Surge Capability: Non-repetitive peak surge current up to 500A.
• High Operating Temperature: Operates reliably up to 175°C.
• Low Forward Voltage Drop: Maximum 1.6V at 50A improves efficiency.
• Avalanche Energy Rated: Enhances durability in transient conditions.
• Silicon Nitride Passivated Epitaxial Planar Construction: Ensures robust performance and reliability.

Additional Specifications:

• Mounting Style: Through Hole
• Maximum Peak Reverse Voltage (VRRM): 600V
• Forward Average Current (If): 50A
• Forward Voltage (Vf): 1.6V
• Maximum Surge Current: 500A
• Reverse Current (Ir): 250µA At 25°C
• Operating Temperature Range: -55+175°C
• Dimensions: 15.75s20x4.83Mm
