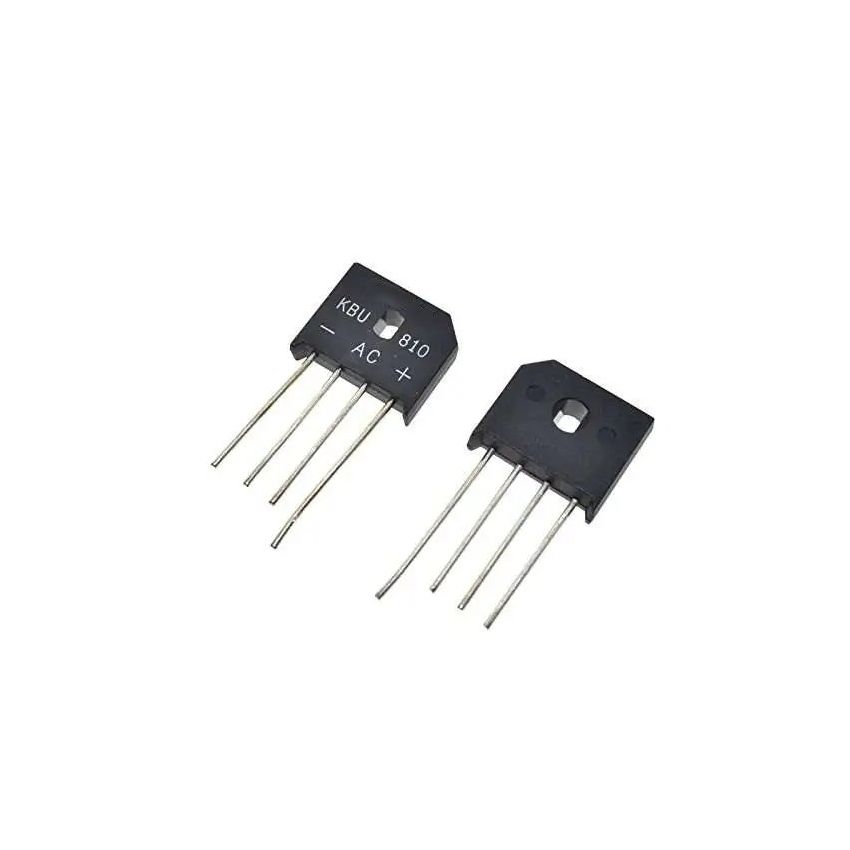

KBU810, 8A 1000V Single-Phase Bridge Rectifier, KBU

The KBU810 is a single-phase bridge rectifier designed for general-purpose AC to DC conversion. Its high voltage and current ratings, along with its robust construction, make it suitable for a wide range of applications, including power supplies, battery chargers, and motor drives. The device's compact KBU package allows for easy mounting on printed circuit boards.​

Key Features:

• High Voltage Rating: Capable of withstanding up to 1000V peak reverse voltage, suitable for high-voltage applications.​
• High Current Handling: Supports an average forward current of 8A, ideal for power rectification.​
• High Surge Capability: Can handle surge currents up to 200A, enhancing durability under transient conditions.​
• Low Forward Voltage Drop: Typical forward voltage drop of 1.0V at 4A, minimizing power loss.​
• Reliable Construction: Molded plastic case with UL 94V-0 flammability rating, ensuring safety and durability.​
• Wide Operating Temperature Range: Operates reliably within a temperature range of -55°C to +150°C.​

Additional Specifications:

• Type: Single Phase Bridge Rectifier​
• Mounting Style: Through Hole
• Peak Reverse Repetitive Voltage (VRRM): 1000V
• Forward Average Current (If): 8A
• Forward Voltage (Vf): 1V At 4A
• Maximum Surge Current: 200A
• Reverse Current (Ir): -55+150°C
• Dimensions: Standard KBU Package Dimensions
