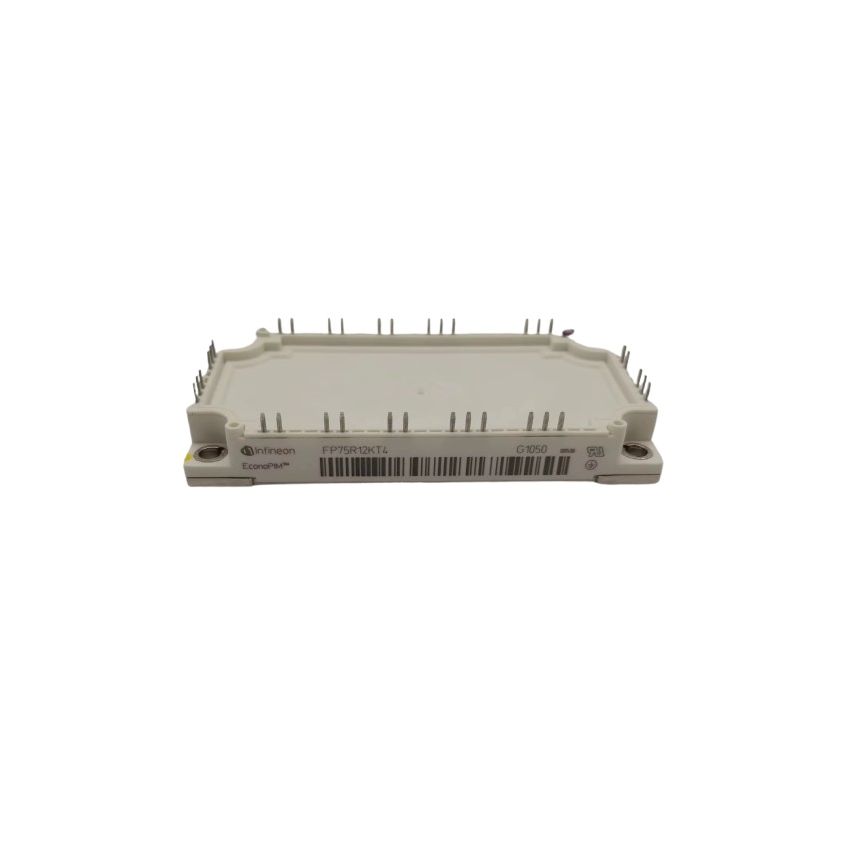

FP75R12KT4, 75A 1200V IGBT Module, EconoPIM™ 3 Package

The FP75R12KT4 is a high-performance IGBT module from Infineon's EconoPIM™ 3 series. It integrates Trench/Fieldstop IGBT4 technology with Emitter Controlled 4 diodes and an NTC thermistor, offering efficient switching and reliable thermal monitoring. Designed for demanding applications such as motor drives and servo systems, this module ensures robust performance and longevity.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1200V collector-emitter voltage and 75A continuous collector current, suitable for high-power applications.​
• Low Saturation Voltage: Typical V_CE(sat) of 2.15V at 25°C, ensuring efficient operation.​
• Fast Switching Performance: Turn-on delay time of 160ns and turn-off delay time of 430ns, facilitating rapid switching operations.​
• Integrated NTC Thermistor: Provides temperature monitoring for enhanced system protection.​
• Robust Thermal Management: Features a copper baseplate and low thermal resistance (R_thJC = 0.39°C/W) for effective heat dissipation.​
• Versatile Applications: Ideal for use in motor drives, servo drives, and medical equipment.​

Additional Specifications:

• Mounting Style: Chassis Mount
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 75A
• Power Dissipation: 385W
• Operating Temperature Range: -40+150°C
