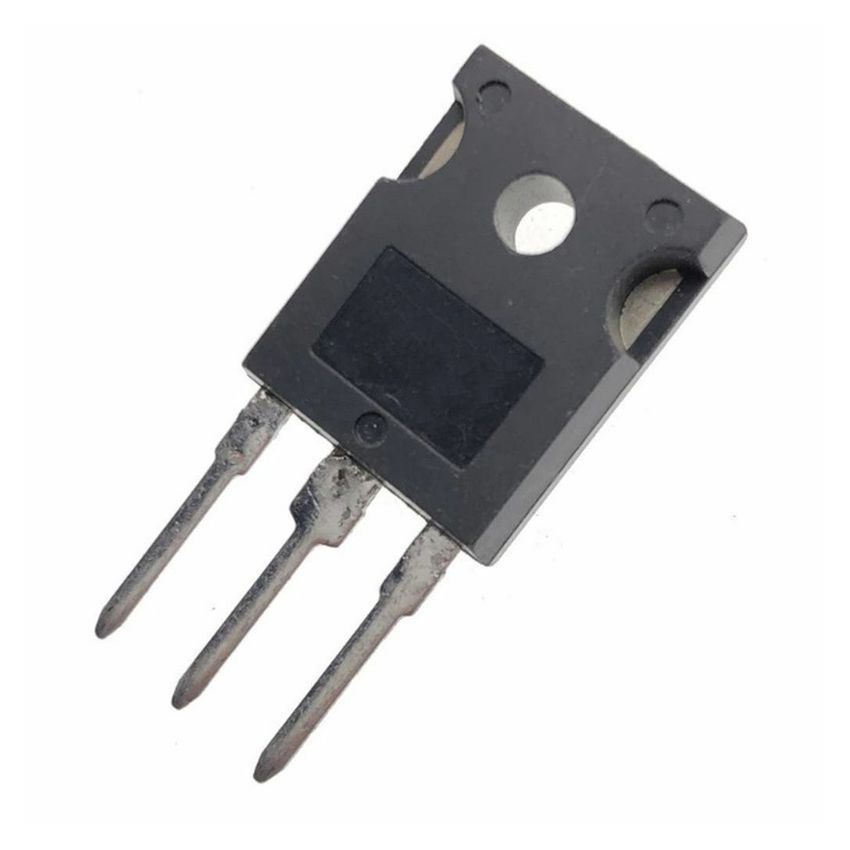

K25H1203, 25A 1200V IGBT, TO-247-3

The K25H1203 is a high-performance IGBT designed for high-speed switching applications. Its low saturation voltage and fast switching capabilities make it ideal for use in high-frequency inverters, UPS systems, and motor drives. The integrated soft, fast recovery diode enhances performance in switching applications, while the TO-247-3 package facilitates easy mounting and thermal management.​

Key Features:

• High Voltage and Current Ratings: Supports up to 1200V collector-emitter voltage and 25A continuous collector current, suitable for high-power applications.​
• Low Saturation Voltage: Typical V_CE(sat) of 2.05V at 25°C, ensuring efficient operation.​
• Fast Switching Performance: Turn-on delay time of 27ns and turn-off delay time of 277ns, facilitating rapid switching operations.​
• Integrated Anti-Parallel Diode: Features a soft, fast recovery diode for improved performance in switching applications.​
• Robust Thermal Management: Low thermal resistance (R_thJC) of 0.46°C/W ensures effective heat dissipation.​
• High Junction Temperature: Maximum operating junction temperature of 175°C, allowing for high-temperature applications.​

Additional Specifications:

• Mounting Style: TO-247-3
• Collector-Emitter Voltage (VCEO) : 1200V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 25A
• Power Dissipation: 326W
• Operating Temperature Range: -40+175°C
