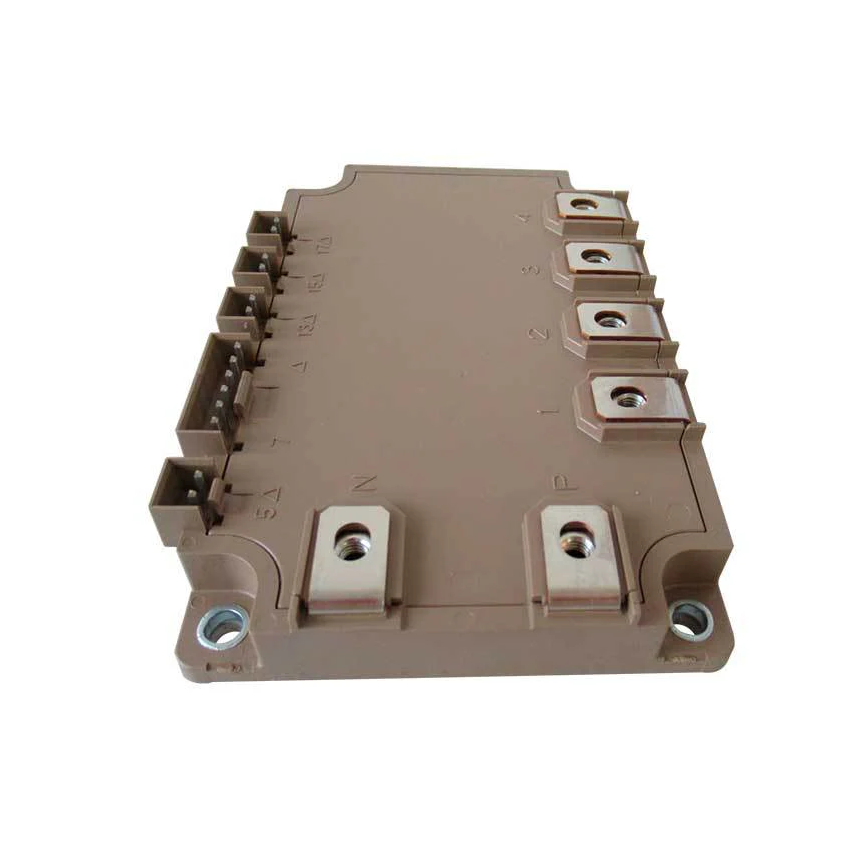

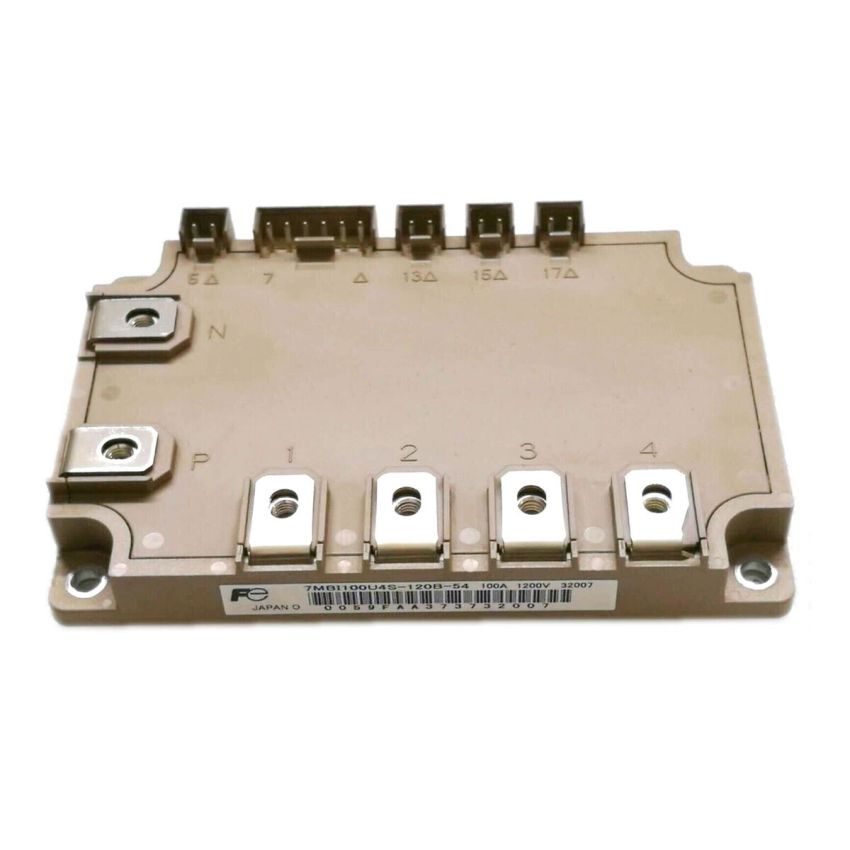

7MBI100U4S-120B-54 100A 1200V IGBT Module

The 7MBI100U4S‑120B‑54 is a high‑power IGBT module designed for demanding applications such as motor drives, inverters, and industrial power conversion systems. It provides a collector‑emitter voltage rating of 1200 V and continuous collector current of 100 A, delivering robust switching performance with low saturation voltage. The module includes integrated free‑wheeling diodes, and is engineered for high efficiency, compact form factor, and enhanced thermal management. Typical applications include AC servo drives, inverter systems, welders, and UPS equipment. The module is packaged for screw‑mounting to a heatsink, offering reliable operation over a wide temperature range and integrates into high‑density power assemblies.

Key Features:

• Rated for 1200 V collector‑emitter voltage enabling high‑voltage operation.
• Continuous collector current capability of 100 A (at specified conditions) making it suitable for heavy loads.
• Low VCE(sat) (typical ~2.2 V at 100 A) for reduced conduction losses.
• Integrated free‑wheeling diodes reduce component count and simplify system design
• High thermal performance with good thermal resistance metrics (e.g., Rth(j‑c) ~0.24 °C/W typical) for effective heatsinking
• Suitable for compact power modules ("7‑in‑1 PIM" style) enabling high power density in inverter modules.

Additional Specifications:

• Mounting Style: Screw‑mount, baseplate module (power block style)
• Collector-Emitter Voltage (VCEO) : 1200 V
• Maximum Gate Emitter Voltage: ±20 V (typical rating for module)
• Continuous Collector Current at 25 C: 100 A (at TC = specified condition)
• Power Dissipation: (Need to refer to datasheet – thermal resistance ~0.24 °C/W suggests high power capability)
• Operating Temperature Range: Junction Tj typically up to ~150 °C (module spec)
