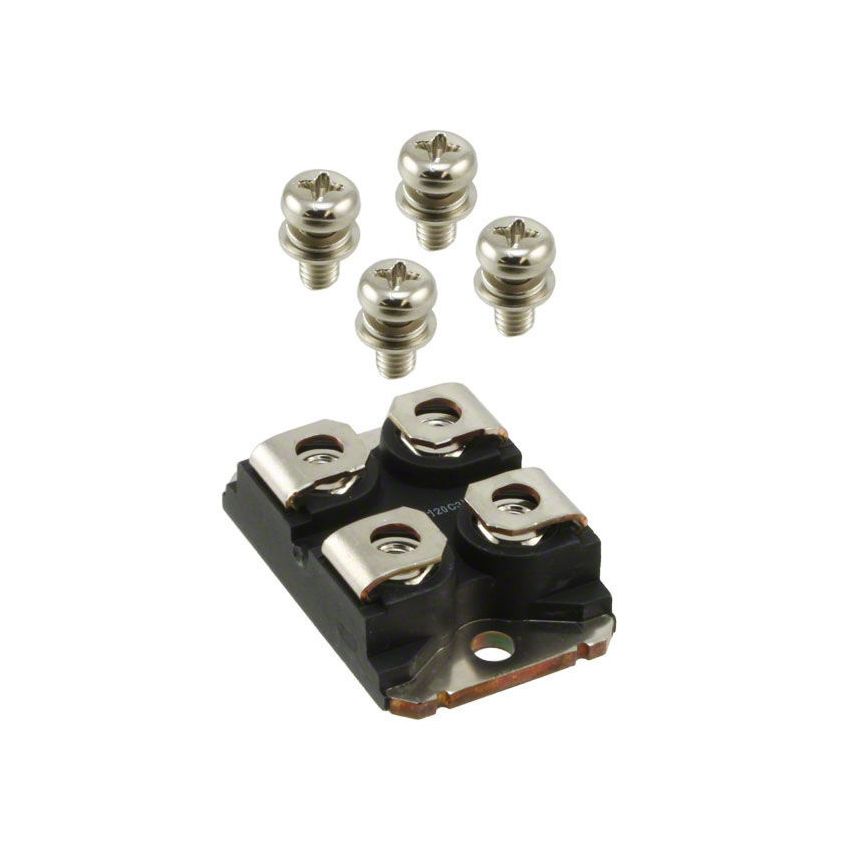

IXFN48N50U2, 48A 500V N-Channel Power MOSFET, SOT-227B

The IXFN48N50U2 is a high-performance N-Channel Power MOSFET from IXYS Corporation's HiPerFET™ series. Designed for high-power switching applications, it offers low on-resistance, fast switching capabilities, and robust thermal management. Its standard SOT-227B package and high isolation voltage make it suitable for use in power supplies, motor drives, and other demanding applications.​

Key Features:

• High Voltage and Current Ratings: Supports up to 500V drain-source voltage and 48A continuous drain current, suitable for high-power applications.​
• Low On-Resistance: R_DS(on) of 100mΩ ensures efficient operation with minimal power loss.​
• Fast Switching Performance: Total gate charge of 270nC and input capacitance of 8400pF facilitate rapid switching operations.​
• Robust Thermal Management: Power dissipation of 520W and low thermal resistance (R_th(j-c)) of 0.29°C/W ensure effective heat dissipation.​
• High Isolation Voltage: Isolation voltage of 3000V AC allows for safe operation in high-voltage environments.​
• Standard Package: SOT-227B package (miniBLOC) with chassis mount simplifies integration into various systems.​

Additional Specifications:

• Mounting Style: Chassis Mount
• Collector-Emitter Voltage (VCEO) : 500V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 48A
• Power Dissipation: 520W
• Operating Temperature Range: -40+150°C
