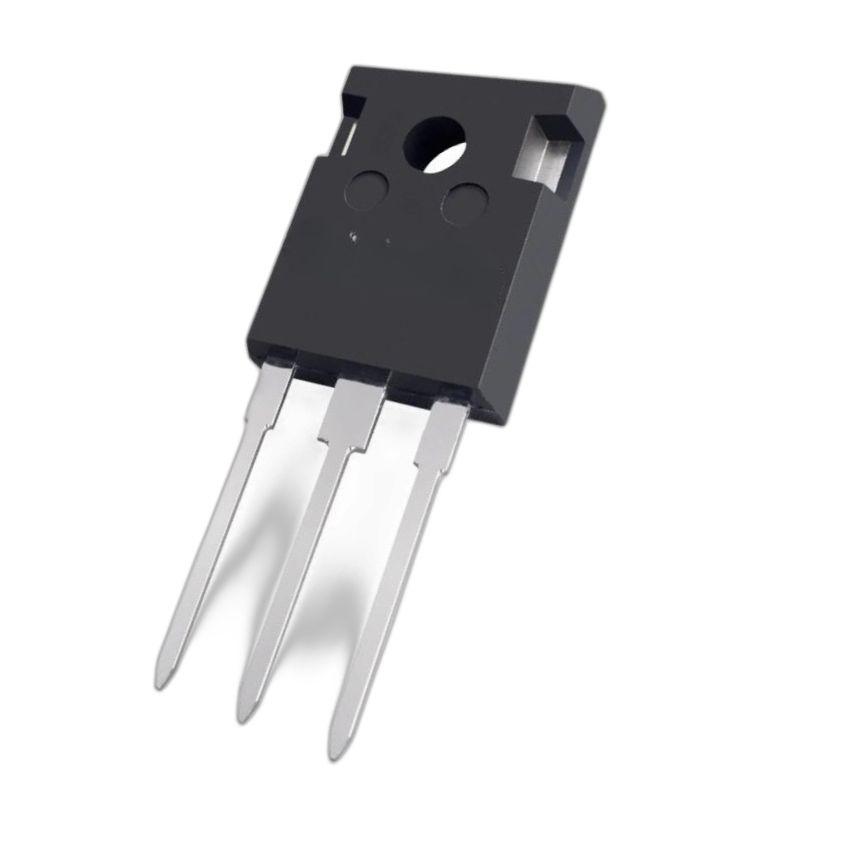

STGY40NC60VD, 50A 600V Very Fast PowerMESH™ IGBT, TO-247-3

The STGY40NC60VD is a very fast PowerMESH™ IGBT designed for high-frequency applications. Its low saturation voltage and fast switching capabilities make it ideal for use in high-frequency inverters, UPS systems, and motor drivers. The integrated ultra-fast recovery diode enhances performance in switching applications, while the TO-247-3 package facilitates easy mounting and thermal management.​

Key Features:

• High Voltage and Current Ratings: Supports up to 600V collector-emitter voltage and 50A continuous collector current at 100°C, suitable for high-power applications.​
• Low Saturation Voltage: Typical V_CE(sat) of 1.9V at 25°C, ensuring efficient operation.​
• Fast Switching Performance: Turn-on delay time of 43ns and turn-off delay time of 140ns, facilitating rapid switching operations.​
• Integrated Antiparallel Diode: Features a very soft ultra-fast recovery diode for improved performance in switching applications.​
• Low Gate Charge: Total gate charge of 214nC, enabling efficient gate drive.​
• Thermal Efficiency: Low thermal resistance (R_th(j-c)) of 0.48°C/W ensures effective heat dissipation.​

Additional Specifications:

• Mounting Style: TO-247-3
• Collector-Emitter Voltage (VCEO) : 600V
• Maximum Gate Emitter Voltage: 20V
• Continuous Collector Current at 25 C: 80A
• Power Dissipation: 260W
• Operating Temperature Range: -55+150°C
